Was There a Personal Rivalry between Juliana and Justinian?

Many scholars believe that a great rivalry existed between the foundress of St. Polyeuktos, Anicia Juliana, and the founder of Hagia Sophia, Emperor Justinian, and that this rivalry was one of the driving forces for both of these spectacular architectural achievements.Footnote ³⁶ Indeed, these two characters appear to be the perfect antagonists in this historical screenplay. On the one side we find the high-born aristocrat Anicia Juliana, whose family was one of the most illustrious in the Roman Empire and whose epigrams in St. Polyeuktos testify to the highest level of classical education. On the other side stands Emperor Justinian, who was often portrayed as a lowborn social climber from the provinces and whose proficiency in the Greek language was weak, if we believe Procopius’ accusations.

Scholars believe that Anicia Juliana built the church of St. Polyeuktos as a visual reminder in the cityscape of Constantinople that the Theodosian house was a serious rival to the ruling authority in both the political and religious spheres.Footnote ³⁷ The two dedicatory poems of St. Polyeuktos insistently refer to the imperial lineage of Anicia Juliana and are commonly understood to question the authority of the emperor (see Section 6). Indeed, the Anicii were part of the highest society and were a family of such prestige that they could well have provided an emperor. However, this storyline presents some chronological issues. If one accepts the early dating for the beginning of the construction of St. Polyeuktos in the years 512/13, as Jonathan Bardill has convincingly shown on the basis of the evidence drawn from brick stamps, Justinian cannot have been the initial target of such a political project. At that time, after all, Emperor Anastasius I still resided in the imperial palace, to whom Juliana and her husband Areobindus were loyal. There is no historical evidence for the common scholarly conviction that Juliana hoped to elevate her son to the throne as emperor after the death of Anastasios.Footnote ³⁸ Moreover, the election of Justin I and the elevation of Justinian to co-Augustus in 527 would have put an abrupt end to such hopes if they had indeed existed. Finally, there would have been very little time for a rivalry to unfold between Juliana and Emperor Justinian, as she died only a year after his coronation in 528.

A small group of textual sources is generally cited as evidence of an alleged rivalry between Juliana and Justinian. The first consists of the enkomion in Juliana’s church and the epigram in the church of Sts. Sergius and Bacchus, Justinian and Theodora’s first foundation as the reigning imperial couple. The latter is often interpreted as the court’s response to the provoking poems in St. Polyeuktos.Footnote ³⁹ If this was true, though, this much shorter epigram in this much smaller church would have been a very restrained imperial reply; for this reason alone, this evidence is unconvincing. The compared epigrams work very differently in the architectural space and the references made are of a very general nature.Footnote ⁴⁰ Both poems address similar themes like piety, toil, and labor, which is not surprising in dedicatory epigrams from this time and location.Footnote ⁴¹ If we look at the epigrams from an archaeological perspective and understand them as stone masonry, the idea of one responding to the other becomes far-fetched (see Section 6).

In Gregory of Tours’ De Gloria Martyrum, the sixth-century Frankish chronicler tells an oft-cited story of how Juliana tricked Justinian, who sought to deprive her of her riches, by casting all of her gold into plaques that were affixed to the ceiling of her new basilica.Footnote ⁴² This anecdote is not only of archaeological interest for the reconstruction of the roof of the church of St. Polyeuktos (see Section 8) but is also seen as evidence of the rivalry between the two. As the story goes, Justinian learned of Juliana’s wealth and decided to approach her for a donation to the imperial treasury. Juliana managed to stall the emperor in order to “conceal what she had consecrated to God.”Footnote ⁴³ She summoned craftsmen and asked them to cover the church’s ceiling with the rest of her gold “so that the hand of this greedy emperor w[ould] not touch [the gold].”Footnote ⁴⁴ Arriving at Juliana’s church with the expectation that he would receive a great fortune, Justinian understood that he had been tricked by her. Hiding his embarrassment, the emperor gave thanks and let Juliana placate him with a small gold ring.

It is not easy to determine the credibility of this text, written in distant France, half a century after the encounter, and by an author who had never visited Constantinople himself.Footnote ⁴⁵ Though it contains some information that is generally considered correct about the shape and location of the famous church, the passage of Anicia Juliana’s encounter with the emperor makes use of a very popular topos, namely, the greedy tax collector Justinian.Footnote ⁴⁶

That this topos of “Kaiserkritik” against Justinian as a greedy yet easily fooled emperor enjoyed long-lasting popularity, at least in the West, can be seen in an episode in Agnellus’ Liber Pontificalis Ecclesiae Ravennatis.Footnote ⁴⁷ The ninth-century chronicler begins his chapter on Bishop Maximian with an interesting, but lesser-known, anecdote on how the latter obtained the emperor’s support for his election to become bishop of Ravenna.Footnote ⁴⁸

In Agnellus’ story again, the image of the money-grubbing Justinian is used, who allows himself to be cheated by a tricky protagonist. We can conclude for the earlier work of Gregory of Tour, that the anecdote of Juliana and Justinian does not aim to inform us about the relationship or rivalry between the two protagonists nor to give any art-historical information about the roof of St. Polyeuktos. Gregory’s book is first of all a hagiographical work that makes use of this captivating narrative to tell a miracle story about his main figure, the holy martyr Polyeuktos. The Frankish author concludes his account as follows:

Even if we consider that Gregory probably had access to Byzantine sources, we should be cautious about reading the text as an account reflective of the genuine reality of sixth-century Constantinople.Footnote ⁵¹ Much as we would like to, we certainly cannot accept it as a record of an instance of personal bickering between Juliana and Justinian.Footnote ⁵²

Justinian’s famous line when he first entered the rebuilt Hagia Sophia is also often quoted to link the alleged rivalry between the two to their church foundations. His phrase “Solomon, I have defeated you!” (ἐνίκησά σε Σολομών)Footnote ⁵³ is transmitted through the Diegesis, a notoriously inaccurate ninth-century source referenced frequently, but with too little skepticism.Footnote ⁵⁴ This medieval anecdote is understood by scholars not only as an allusion to the biblical First Temple, but also as the emperor’s rival response to Anicia Juliana and her Church of St. Polyeuktos, which is thought to be a copy of the Temple (see Section 9). Robert Ousterhout would even like to detect a pun here: Ένίκησά / Άνικία.Footnote ⁵⁵ However, if references to Solomon can be traced to two churches built in Constantinople at about the same time, this is, first of all, not an expression of rivalry but an indication of similarity.Footnote ⁵⁶ During those days, references to Solomon and his Temple were a topos of Christian rhetoric and occur quite frequently in early Byzantine building epigrams and ekphrases.Footnote ⁵⁷ There is no good reason for historians to construct a double entendre here. If Justinian really uttered this sentence – which is more than doubtful – it was hardly in reply to St. Polyeuktos.

It is beyond question that, by founding prestigious and monumental churches, Anicia Juliana and Emperor Justinian both intended to make striking statements of power and authority. However, it is far less certain that the driving force for these large-scale projects was a personal rivalry between these two protagonists.Footnote ⁵⁸ To reduce architectural achievements like the churches of St. Polyeuktos, Sts. Sergius and Bacchus, and Hagia Sophia to an imperial squabble is a double misunderstanding; it not only underestimates the complexity of early Byzantine architectural history but also trivializes the dynamic social relations of Late Antique Constantinople.

The Great Basilicas of the City in the Fifth Century

The Old Hagia Sophia, the predecessor of Justinian’s Great Church, was inaugurated in the year 415 CE as a replacement for an even older church building that stood on the same site.Footnote ⁶² When the church of St. Polyeuktos was built, the cathedral of Constantinople was already 100 years old but remained the largest ecclesiastical building in the capital. Its founder was Anicia Juliana’s great-grandfather, Emperor Theodosius II, whose name also appears prominently in the epigram on the western façade of St. Polyeuktos and whose wife Eudocia is praised in the naos epigram as the foundress of the latter’s predecessor.

We have only limited information about the actual design of Old Hagia Sophia, but we can reconstruct its essential features thanks to textual sources and excavations by Alfons Maria Schneider that brought to light parts of its western entrance.Footnote ⁶³ The main portal of the church was integrated into the portico of a colonnaded street that ran west of the church (Figure 4). A richly decorated propylon within the portico drew attention to the entrance of the church’s atrium.Footnote ⁶⁴ A colossal portal, more than four meters wide and equipped with door frames made of striking red stone, was set into the wall behind this propylon.Footnote ⁶⁵ Two relief friezes, each showing a row of six lambs, were part of the inner architrave of the propylon and ran toward the tympanum above the main portal. These reliefs are of importance for us, since they imply the existence of an original figural decoration in the lunette above the entrance.Footnote ⁶⁶ As for the size of the entire complex, a lateral portal in the rear wall of the portico gives an approximate idea of the width of the church. However, we only have vague indications of the original length. A proportional reconstruction can nevertheless be assumed, at least hypothetically. Old Hagia Sophia is generally reconstructed as a five-nave basilica with galleries and an atrium in the west. In both complexes, the dimensions would be roughly the same, about 50 meters wide and 100 meters long (Figure 5).Footnote ⁶⁷

Figure 4 The west façade and the entrance area of the Old Hagia Sophia

(Credit: Drawing by D. Miznazi 2022 after Reference SchneiderSchneider 1941)

Figure 5 St. Polyeuktos and the great basilicas of the City in the fifth century

(Credit: Drawing by D. Miznazi 2022)

The Church of the Theotokos in Chalkoprateia (Figure 5) was situated within 150 meters of Old Hagia Sophia and contained the most important shrine of the Virgin in Constantinople.Footnote ⁶⁸ Scholars generally date the church roughly to the mid-fifth century, but poor preservation prevents a reliable dating or reconstruction of the building. We know it was a three-aisled basilica with a polygonal apse, a narthex, and an atrium. Of particular interest for us is a connected structure located north of the church’s atrium. As with St. Polyeuktos, since only the substructures have survived, the superstructure of this smaller building cannot be reconstructed with certainty. Here, too, the foundation shows a conspicuous footing in the center. This is generally understood to act as a support for the piscina of a baptistery above, since a monolithic piscina was found on the site.Footnote ⁶⁹

Founded in the mid-fifth century, the Church of St. John Stoudios is the oldest surviving church in Constantinople (Figure 5). The building is often considered the archetype of the City’s classical basilicas, which is probably also due to it being the only surviving structure of this type.Footnote ⁷⁰ It is a three-naved basilica preceded by a narthex and an atrium. Limited archaeological sondages undertaken by Urs Peschlow in the 1970s suggest that this courtyard had a sloping western course to account for a street lying in front of it, similar to the situation west of St. Polyeuktos.Footnote ⁷¹

When compared to St. Polyeuktos, the early basilicas of the City offer a set of comparable characteristics, but also significant differences. All churches had western courtyards and almost square floor plans for naos and aisles together; all had galleries and wooden roofing which was the standard solution for these buildings. The dimensions of St. Polyeuktos are also quite comparable to those of Old Hagia Sophia, making the building one of the largest churches in the City up to the Middle Ages. The propylon of the Old Hagia Sophia is a final important point of comparison, as it also contains images on the external structure above the main entrance. The most significant difference between the Church of St Polyeuktos and the fifth-century basilicas, however, is undoubtedly the ambitious architectural motif of the two-story exedrae in the naos (see Section 6) together with the extravagant architectural sculpture (see Section 7). While the decorative system of the early basilicas still was closely linked to the classical orders of Roman architecture, this centuries-old tradition ended with a flourish in St. Polyeuktos.

The Innovative Architecture of the City in the Sixth Century

Chronologically, St Polyeuktos was succeeded by Justinian’s well-preserved churches of Sts. Sergius and Bacchus and Hagia Sophia, today’s Küçük Ayasofya Camii and Ayasofya Camii respectively. These buildings provide dramatic testimony of the vibrance of Constantinople as an architectural laboratory and have often been consulted to explain the forms of St. Polyeuktos.Footnote ⁷²

Since one of the most striking features of St. Polyeuktos is the two rows of exedrae on both sides of the naos, the Church of St. Mary in Blachernai could, at least according to older reconstruction proposals, serve as an additional point of comparison. The appearance of this most important pilgrimage shrine of the Theotokos at Constantinople is roughly known to us by textual descriptions, since the monument itself has not been preserved.Footnote ⁷³ A predecessor was rebuilt in the reign of Justin I (518–527), making it approximately contemporary with St. Polyeuktos. Procopius describes it as a three-aisled basilica with galleries and two rows of columns set in straight lines, except in the center (τὰ μέσα), where they recede (ὑποστέλλονται).Footnote ⁷⁴ This has led some scholars like Cyril Mango to propose a reconstruction of exedrae within the nave’s colonnades, which would have been an interesting parallel to St. Polyeuktos.Footnote ⁷⁵ However, the term ὑποστέλλονται is used elsewhere by Procopius and exclusively in his description of the layout of an apse. It is therefore more likely that Procopius describes the perspective when looking into the church from the western entrance. In this way, the assumed exedra could form the apse of the church.Footnote ⁷⁶ St. Mary in Blachernai should thus be thought of as a large, but standard, basilica, possibly with decorative columns in the apse.Footnote ⁷⁷ Nevertheless, the building most importantly reminds us that despite the innovative features of Justinianic architecture, the basilica was still the most common type of church building.

The Church of Sts. Sergius and Bacchus represents one of Byzantium’s most innovative architectural creations of early Byzantine architecture (Figure 6).Footnote ⁷⁸ The plan includes a domed, octagonal core within an irregular rectangle. Piers define the octagonal naos of the church, but the space between them expands with alternating rectangular and curved recesses on two levels. In the interior, two columns each support an architrave between the dome piers, the course of which describes alternating shallow rectangular niches in the main axes and semicircular exedrae in the diagonals. This division of the walls on the ground floor is continued in the galleries, where the conches and niches are covered by arches that lead to a central pumpkin dome. The architrave between the second floor and the galleries bears an epigram of the founder, often mistakenly interpreted as an imperial reply to the text in St. Polyeuktos (see Section 6 and Figure 18).Footnote ⁷⁹ While the open column positions conceal the basic shape of the octagon, it is the architrave that reveals the complicated basic shape of the complex interior (Figure 6).

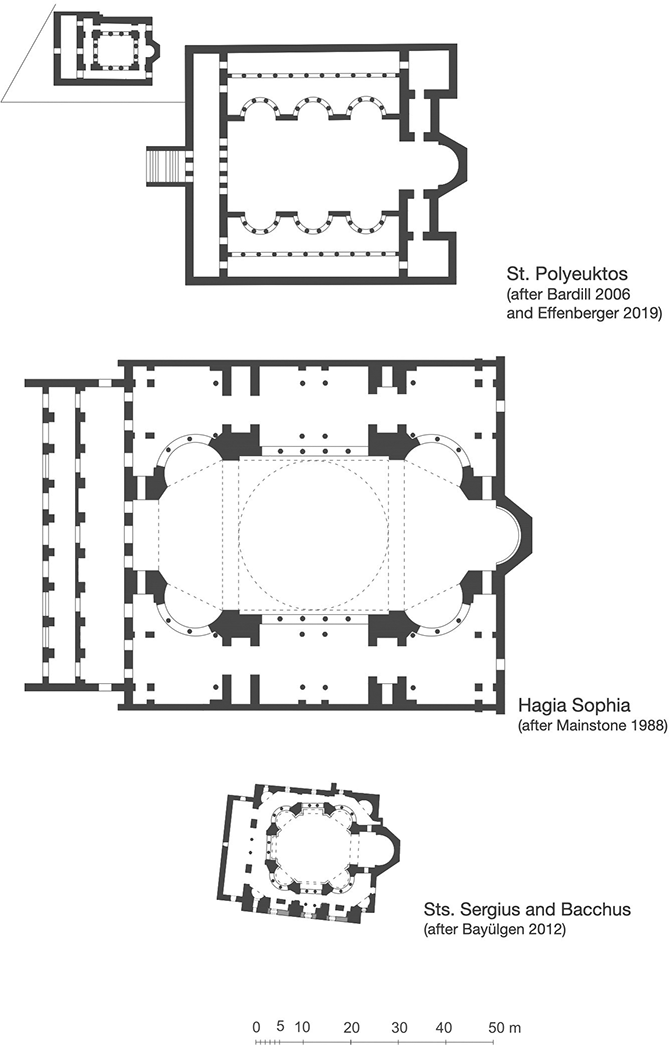

Figure 6 St. Polyeuktos and the great churches of Justinian in City in the sixth century

(Credit: Drawing by D. Miznazi 2022)

Sts. Sergius and Bacchus and St. Polyeuktos can be meaningfully compared to one other. Both were richly decorated and displayed dedicatory epigrams surrounding the nave, combined with monograms on other parts of the sculpture (see Section 7). Both churches share the motif of exedrae over two stories as a distinctive feature of the internal arrangement (Figure 7). However, while innovative in terms of architectural layout, even Sts. Sergius and Bacchus shows some conservative features; instead of arches, the columns on the ground bear the “last architrave of antiquity” and the superposition of the orders of capitals in the interior was justifiably recognized as a conservative element, which is completely left behind in the Hagia Sophia.Footnote ⁸⁰

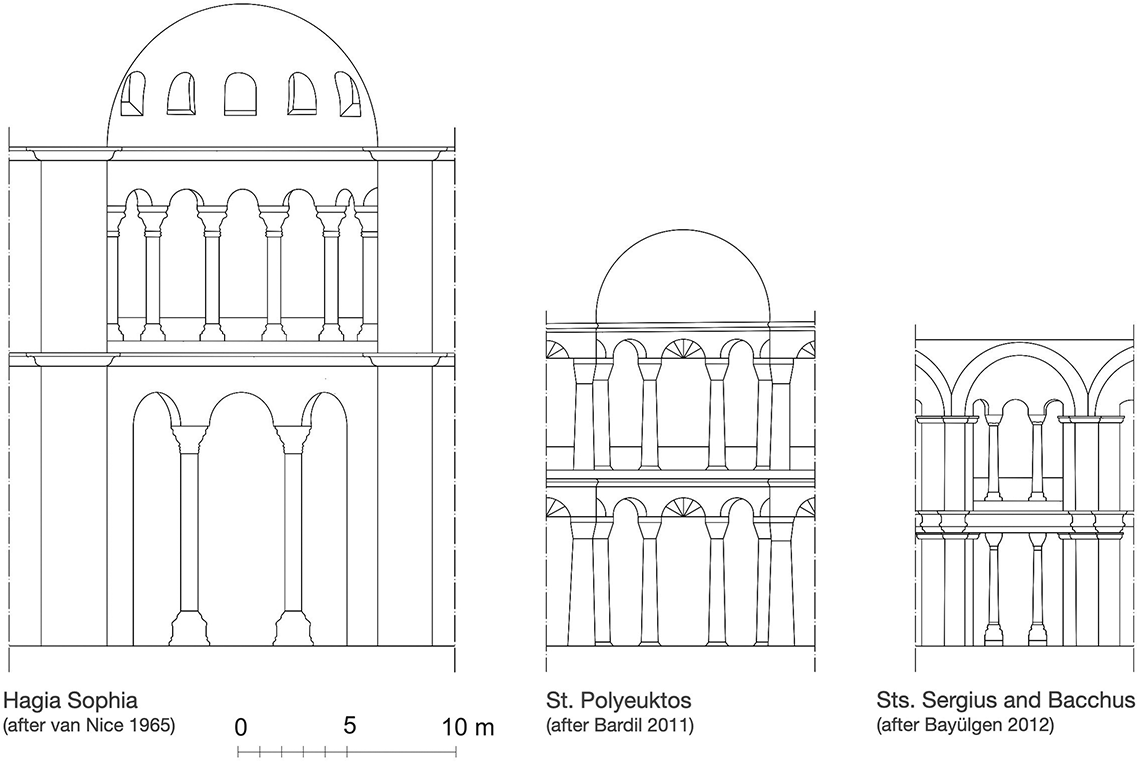

Figure 7 The two-story exedrae of the sixth-century churches in Constantinople in comparison

(Credit: Drawing by D. Miznazi 2022)

When it comes to the architectural motif of two-story exedrae, reference must also be made to the church of St. John in Hebdomon.Footnote ⁸¹ The church’s design finds its closest comparisons in the church of Sts. Sergius and Bacchus and San Vitale in Ravenna.Footnote ⁸² In addition, an inlayed column was found during the excavations, very similar to the architectural decoration of St. Polyeuktos (see Section 7).

Justinian’s Hagia Sophia, then, is the best known and most influential of all Byzantine churches (Figure 6).Footnote ⁸³ It has been considered the most important reference for our understanding of St. Polyeuktos, ever since the moment of the latter’s discovery. Once the Old Hagia Sophia of emperor Theodosius II (see discussion earlier) had been burned in the Nika riots, the already existing plans for Hagia Sophia could be realized. After less than six years – in a remarkably short time – the new church was consecrated in 537 CE. It served as the cathedral of Constantinople and the setting for important imperial ceremonies, but it remained primarily a symbol of Justinian’s dominion.

From an architectural point of view, Justinian’s Hagia Sophia was an experiment on the grandest of scales.Footnote ⁸⁴ The layout is often characterized as the juxtaposition of a longitudinal and centralized plan.Footnote ⁸⁵ However, the innovative design of the Hagia Sophia cannot be explained in terms of its ground plan.Footnote ⁸⁶ The only way to describe its form and concept adequately is by starting from the central motif of the dome. In fact, the floor plan of the naos should be considered only the result and projection of the dome’s construction. In short, the structure was bricked from the bottom up, but designed from the top down. The search for buildings that anticipate the Hagia Sophia is futile, since both the design and the size of the Great Church have no predecessor and no immediate successor.Footnote ⁸⁷

When compared to St. Polyeuktos, the interior design of Sts. Sergius and Bacchus and Hagia Sophia shares the concept of sophisticated major spaces in the center with lateral rooms that are independent secondary structures (Figure 6). There is no total design for this group of churches, but the intention to create interiors of exceptional shape. This may also explain the emphasis on vertical axes by using the motif of two-story exedrae (Figure 7).

In combination with the adventurous and ostentatious decoration, the rows of two-story exedrae created a completely new internal space for the church architecture of the City. The side aisles clearly become secondary structures in St. Polyeuktos, which no longer could be meaningfully connected to the naos. At the same time, St. Polyeuktos ended up being a conservative building that looked backward rather than forward. Robert Ousterhout was right to point out that the innovative designs of Justinianic architecture stand out both for their vaults and for the subtle geometric complexities that conceptually went far beyond those of St. Polyeuktos.Footnote ⁸⁸ In fact, the exedrae of St. Polyeuktos were merely decorative and not integrated into the structural system in any meaningful way (Figure 6). Therefore, we certainly cannot ascribe to St. Polyeuktos a role as a prototype for Justinianic domed buildings, as has long been postulated.

Topography

The church of St. Polyeuktos and the adjacent palace of Juliana were located in a central area of imperial property, especially the palaces of the Theodosian empresses, which extended along the Mese roughly between Philadelphion and the Forum of Markian (Figures 8 and 9). As indicated by the acute-angled formation of the southwest corner of the side church, the western boundary of the forecourt apparently followed the alignment of a road running along in a southwest-northeast axis and passing through the aqueduct of Valentinian. A main road running from the Charisios Gate (Sulukulekapı) across the Markian Forum into the City passed either the north or south side of the church.Footnote ⁹⁸

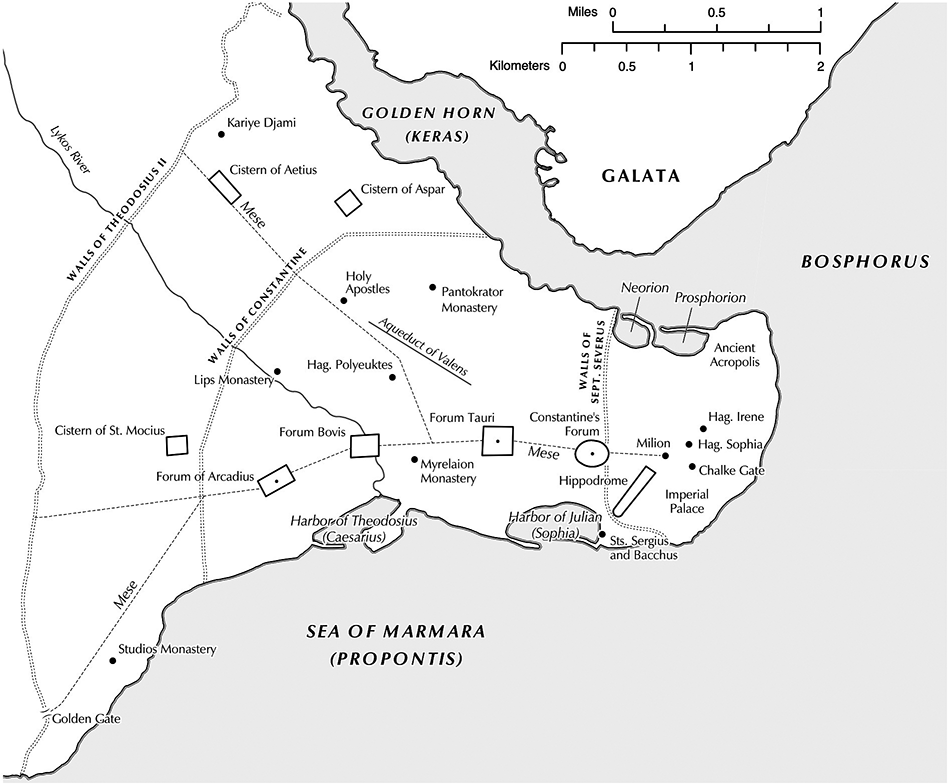

Figure 8 Map of Byzantine Constantinople with the location of St. Polyeuktos in about the center of the peninsula

(Credit: Map by C. Connor and T. Elliott 2003)

Figure 9 Reconstructed view across the cityscape of Byzantine Constantinople. The monumental building in the background on the left is St. Polyeuktos

(Credit: www.byzantium1200.com)

The Atrium and the Western Façade

The entire complex of St. Polyeuktos was about 100 meters long and 50 meters wide and accessible from the West through an atrium (Figure 9).Footnote ⁹⁹ The course of an older road leads to an angled western end for this courtyard (Figure 10). Older research has assumed a propylon as the central gateway to the area, roughly similar to that which we know existed for the western entrance of the Old Hagia Sophia.Footnote ¹⁰⁰ It has also been suggested on the basis of a medieval account that the atrium of St. Polyeuktos could have been open to the road.Footnote ¹⁰¹ Porticoes, which normally frame the interior of the courtyards of Christian basilicas, do not seem to have existed here. An outbuilding overlooked the northern third of the atrium (see discussion later).Footnote ¹⁰²

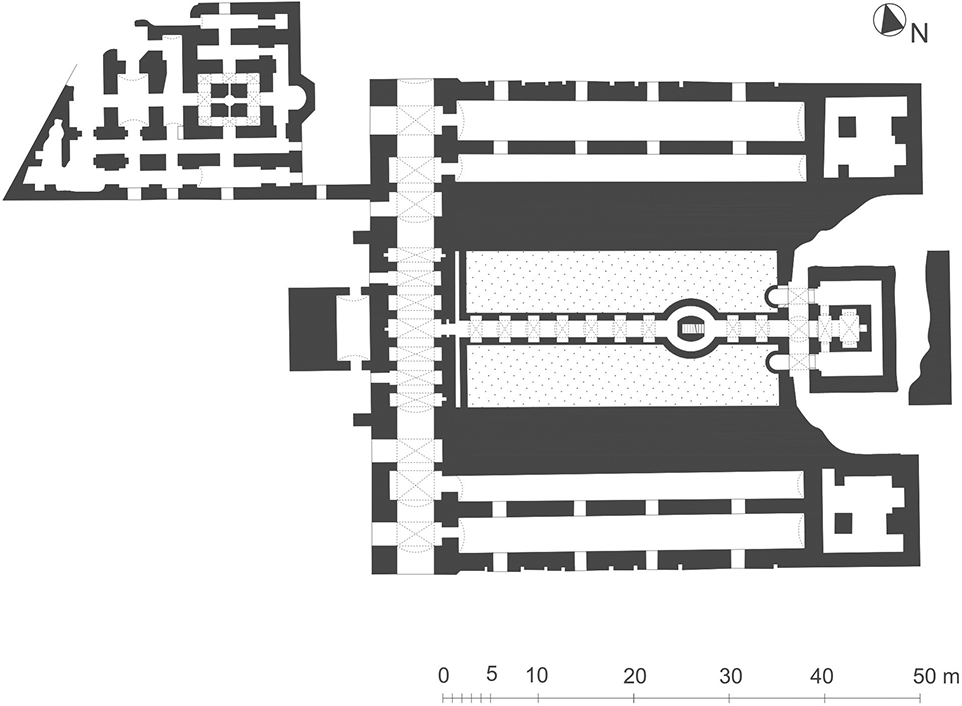

Figure 10 Simplified plan of the foundations of St. Polyeuktos

(Credit: Drawing by D. Miznazi 2022 after Harrison 1989, Fig. 48)

The western façade of the church is a special case for several reasons. The church building itself sat on a monumental platform in such a way that the floor level of the church rose 5 meters above the marble pavement of the atrium (see later). A large flight of steps bridged this difference in level and led to the three main portals. Remains of this nine-meter-wide staircase were still found during the excavations. We know from textual sources that large plaques with inscriptions were placed next to the portals of the western façade (see Section 6) and that three mosaic paintings with scenes from the life of Constantine the Great hung above them. All these features – the elevated church, the flight of steps leading to the elevated main entrance, and the inscription panels and mosaic paintings on the exterior – are very exceptional features in the history of Byzantine architecture.Footnote ¹⁰³

The Outbuilding

In the northern part of St. Polyeuktos’ atrium lie the foundations of a building that look like a second, but much smaller, church. Even though this building stood literally in the shadow of the main church, it has barely been studied so far (Figure 10).Footnote ¹⁰⁴ Scholars have tentatively identified it as the baptistery of St. Polyeuktos; other options include a palace building or even the burial chapel of the foundress Anicia Juliana.Footnote ¹⁰⁵ In any case, the cross-vaulted grille foundations indicate that sophisticated and ambitious architecture must have existed above it as well.

A striking feature of its substructures is a central room (6 x 7 m) surrounded by a system of longitudinal and transversal foundation walls that form four lateral corridors around it, with two additional corridors to the west and a polygonal apse in the east. A key to understanding this architecture may lie in the middle of this central room: a strange square foundation of 4 x 4 meters (Figure 10). Four brick pillars in the corners of this foundation supported the brick vault of the central room, a barrel vault on each side, and a cross vault in each corner. In the center of the foundation was a cylindrical recess (∅ 80 cm), which the inner sides of the brick piers accommodated with their carefully designed curves. The function of this recess remains a riddle. The excavator explained the foundation as the substructure of a piscina and reconstructed the building above as a baptistery.

This interpretation has at least two problems. The grille foundations of this complex suggest the existence of an elongated church building, but the early Byzantine baptisteries in Constantinople, as far as we know, tended to be centralized structures.Footnote ¹⁰⁶ The baptisteries of St. Mary of Chalkoprateia and Hagia Sophia were octagonal central rooms with diagonal niches inscribed in an externally square building.Footnote ¹⁰⁷ The substructures of the baptistery of St. Mary of Chalkoprateia show a comparable central base construction as a support for the piscina (Figure 5).Footnote ¹⁰⁸ The curious foundation in the basement of St. Polyeuktos would in principle be able to support the heavy weight of a piscina placed above it, but what purpose would the cylindrical cavity below have served? Moreover, the question arises why the palace church of Juliana should have had a baptistery at all.Footnote ¹⁰⁹

Later on, the substructures of the outbuilding were covered with waterproof plaster to function as cisterns (see Section 10).

The Main Body of the Church

The main body of the church sat on a monumental pedestal 5 meters above the level of the atrium. While the church itself is lost today, the excavations have uncovered most of its substructures. This structure had a length of about 59 meters and a width of about 52 meters. The layout of this basement is the only archaeological source for understanding the construction of the church above it.

On each side of the main staircase was a door leading from the atrium down a few steps to the sub-narthex in the basement of the church (Figure 11).Footnote ¹¹⁰ This sub-narthex was a considerable hall of 40 meters long and 5 meters wide with ceilings made as cross vaults (Figure 10). This gives us an approximate idea of the quality of the church’s fabric and the size of the narthex above.

Figure 11 View from the sub-narthex to its northern entrance door. In the background on the left, the main staircase remains can be seen next to the marble slab floor of the atrium

(Credit: Saraçhane Excavation Archive, University of Oxford)

The basement below the naos and naves of the church was crossed by five vaulted corridors in a west–east axis, corresponding to the five aisles of the basilica. Below the side aisles of the church, these corridors carried barrel vaults and mainly had a structural, nondecorative function. The passage in the central axis instead formed a structural unit with the sub-narthex and was a comparably sophisticated architecture with cross vaults. To the east, this central aisle ended in a multi-chambered crypt directly under the altar of the church, another unique feature of St. Polyeuktos (Figure 12).Footnote ¹¹¹

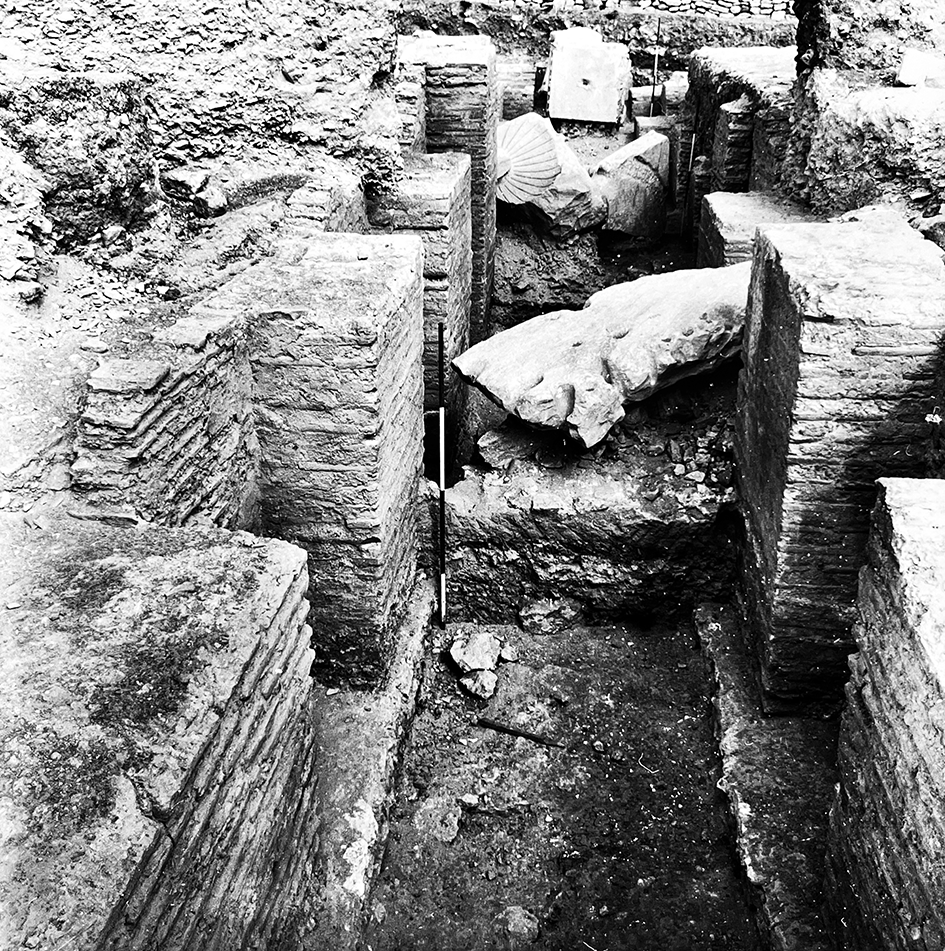

Figure 12 View into the axial corridor looking east with numerous fallen marble pieces

(Credit: Saraçhane Excavation Archive, University of Oxford)

The Crypt

The eastern end of the axial corridor leads into a transverse hall, from which there are three entrances to the crypt (Figures 10 and 13). A threshold found in situ suggests that these doors were lockable. The two side doors lead into a Π-shaped ambulatory, the floor of which was covered with bricks, while the central door led through a small antechamber into the central room, the floor and walls of which were decorated with marble. This central chamber was a rectangular room with a small eastern niche and larger rectangular niches on either side. A rectangular marble slab in the middle of the floor probably marked the former location of an altar or place of worship. Opposite the side entrances to the crypt were small round niches, the function of which unfortunately remains completely unknown. The unusual size and design of the crypt suggest that the relics of the church patron – medieval sources speak of the head of St. Polyeuktos – were kept here and made accessible.

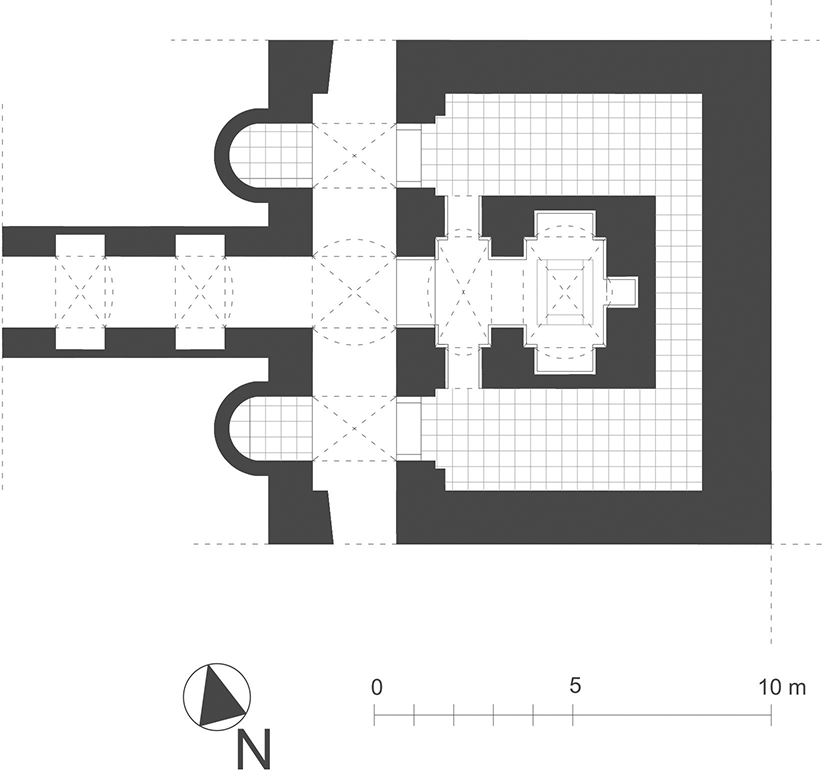

Figure 13 Plan of the crypt of St. Polyeuktos

(Credit: Drawing by D. Miznazi 2022 after excavation sketchbook of G. Lawson)

Apart from St. Polyeuktos, only small cruciform altar crypts are known to have existed in the City during the fifth/sixth centuries; these include the Basilika of St. John Studios, the Church of the Theotokos in Chalkoprateia, the Church of St. Agathonikos, and the Church of Sts. Sergius and Bacchus.Footnote ¹¹² The only evidence of a larger crypt in early Byzantine Constantinople is known to exist for the Church of St. John in Hebdomon.Footnote ¹¹³ Unfortunately, very few remains of the latter church building have been found. However, under the apse, two passages of 2.50 meters in height and 1.5 meters in width were unearthed. In this case, the excavators believed to have found the entrances to a large crypt below the altar of the church.Footnote ¹¹⁴

In St. Polyeuktos, the central corridor leading to the crypt was closed off at a later date.Footnote ¹¹⁵ Both accesses in the west and in the east show careful bricking. The exact date of this bricking is unknown, but the quality of the masonry led the excavators to assume that it took place shortly after the construction of the church. Therefore, the Church of St. Polyeuktos testifies an unprecedented form for a crypt, but we can say only little about its actual function as a sacred space in the early Byzantine topography of the City.

The Naos

The most striking feature for the reconstruction of the naos are the two wide foundation strips that extend along the entire length of the building (Figure 10). What was the reason for these oversized massive foundations? While older research believed large pillars were placed here to support a supposed dome, Jonathan Bardill hypothesized that we must assume two rows of three exedras each on these foundation strips (see Section 8).

The church’s interior was magnificently decorated with marble paneling and rich inlay work. Small fragments of these wall coverings have been recovered in large numbers. Among them were various colorful marbles, such as red porphyry from Egypt, green porphyry from the Peloponnese, yellow marble from Tunisia, green breccia from Thessaly, black-and-white speckled marble from the Pyrenees, and many other varieties.Footnote ¹¹⁶

The debris of the church revealed an abundance of mosaic tesserae embedded in small fragments of plaster that had fallen from the apse and walls. The mosaics are mainly made of glass, occasionally marble, limestone, and terracotta. Of the figurative fragments that have been found, all but one come from the apse area. There is good stratigraphic evidence that this vault mosaic belongs to the construction period of the church. This mosaic is thus of particular interest from an art-historical point of view, as it is the only figurative vault mosaic of the sixth century that has been discovered in Constantinople and that we can prove by its material remains.

Only limited remains of liturgical furniture from St. Polyeuktos could be found during excavation. The synthronon – a semicircular tiered bench for the clergy in the apse – has not survived in the archaeological record, but can be reconstructed with certainty.Footnote ¹¹⁷ Several fragments of magnificent inlaid columns were found in the altar area, which is why scholars would like to recognize these pieces as the supports of the ciborium.Footnote ¹¹⁸ A high templon, which can also be reconstructed with certainty, may have consisted of the many components of plinths, posts, and screens found during the excavations. However, none of this evidence is conclusive.

The most extraordinary piece of liturgical furniture is certainly the ambo of the church of St. Polyeuktos or, rather, its unique two-story construction (Figure 14). Although only a few fragments were found during excavation that could have belonged to an ambo, an oval foundation in the axial passage allows a reliable reconstruction of the pulpit. The shape and enormous size of this foundation suggest a similar structure to that described in detail by Paul the Silentiary regarding the rebuilding of Justinian’s Hagia Sophia in 563 AD.Footnote ¹¹⁹ The central element was formed by the classical components of a Byzantine ambo, which is an oval pedestal supported by columns, to be ascended by a flight of steps in the east and west. Around this central element, eight higher columns were placed in a circle, supporting an architrave. Following Paul’s description, we can reconstruct man-sized barrier plates between this outer ring of columns. For Hagia Sophia, we know that this area was the designated place for a choir.Footnote ¹²⁰ This function could similarly explain the peculiarity of the ambo in St. Polyeuktos. Its oval foundation in the underfloor passage shows a recess in the eastern part with steps. These steep stairs made it possible to enter and leave the screened area below the ambo unseen from the underground corridor. While Harrison, who was responsible for excavations, suggested that it was used to present relics from the crypt to the public, it is equally possible that it was an entrance for the choir, or merely a supply entrance. In any case, these cellar steps are an unparalleled feature of the liturgical furniture in St. Polyeuktos.

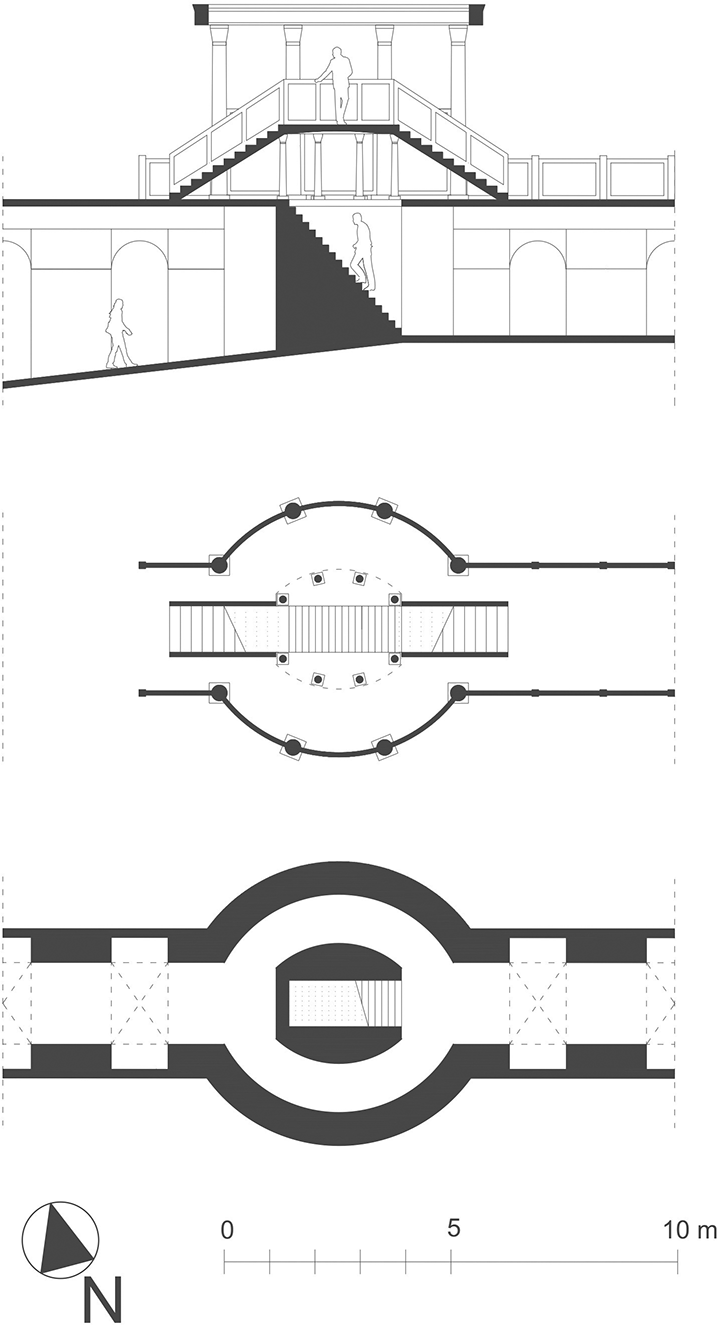

Figure 14 Reconstruction of the two-story ambo of St. Polyeuktos

(Credit: Drawing by D. Miznazi 2022 after excavation sketchbook of G. Lawson)

The Ekphrasis at the Western Façade

The first epigram under discussion consists of an ekphrasis – a poetical description of a visual experience. Since no material remains of this inscription survive, it is not easy to reconstruct the specific materiality of this epigram. Instead, we have to rely solely on the information provided in the manuscript. A marginal note in the manuscript locates the text “at the entrance of the same church” (ἐν τῇ εἰσόδῳ τοῦ αὐτοῦ ναοῦ), while another writer’s hand specifies its position “outside the narthex” (ἒξωθεν τοῦ νάρθηκος), that is, the western façade of the church. The manuscript also offers precise information about the arrangement and mise-en-page of the poem: “There are four panels on which this is written, five or six verses on each” (τέσσαρες εἰσὶ πίνακες ἐν ᾧ ταῦτα καὶ περιγράφονται ἀνὰ στίχους πέντε ἤ καὶ ἕξ). A final scholion next to verse 66 says: “This is the last panel, on the right side of the entrance, on which this is written” (ἒσχατός ἐστι πίναξ ὁ πρός τοῖς δεξιοῖς μέρεσι τῆς εἰσόδου ἐν ᾧ ἐπιγέγραπται τοῦτα).Footnote ¹²³

These first two panels (41–49) start with heavily embellished passages that invoke Anicia Juliana’s illustrious predecessors in the building of great constructions. First, she links her name with her own famous family members and ancestors, including Constantine I and Theodosius II. The former was the founder of the City, which was then named after him; the latter was the founder of the largest church in Constantinopolis until the construction of St. Polyeuktos, Old Hagia Sophia (see Section 3). A reference to Solomon – a common topos of panegyric texts in Late Antiquity – also links her building project implicitly to the Temple of the Old Testament king (see Section 9).

These three panels (50–71) bear an ekphrasis of the church laced with symbolic language, connotations, and images. Although an ekphrasis cannot be expected to describe a building in art-historical terms, it – together with further support from excavation results – can help us determine some characteristics of its construction.Footnote ¹²⁴ For example, we know that there were galleries on either side of the nave, and that supports resting on them held up the roof. The epigram’s phrase referring to the ceiling (χρυσορόφου ἀκτῖνας ἀερτάζουσι καλύπτρης) was for a long time understood as clear evidence for a central dome, but the passage seems to refer instead to the gilded wooden beams or cassettes of a gable roof (see Section 8). Exedrae – or recesses hollowed out in arches – appear on both sides of the naos, which must refer to the galleries discussed above. The epigram’s metaphor of these recesses “giving birth to the ever-revolving light of the moon” should be interpreted as evidence for possible windows – either in the calottes themselves, as is the case in the Hagia Sophia, or more likely in the clerestory running above them.Footnote ¹²⁵ Other metaphors indicate that the walls were lined with precious marbles.Footnote ¹²⁶

The epigram concludes with a brief, but important, reference to three large images – likely executed in mosaic – which were presumably mounted above the portals of the church’s western façade. They depicted episodes from the life of Constantine I: namely, the Battle of the Milvian Bridge, the Baptism of Constantine, and an additional battle scene.Footnote ¹²⁷ We know little about pictorial decoration on the exteriors of early Byzantine churches, but the lunette image of Old Hagia Sophia may serve as a comparison (see Section 3).

Scholars have pointed out that there is a considerable discrepancy between the distribution of verses on inscription tablets given in the Anthologia Palatina and the syntax of the poem itself. Asterisks in the margins of the manuscript indicate five divisions of the epigrams into units of four, five, and six lines. Since this division of the poem resulted in broken phrases, it appeared problematic from a philological point of view. As a result, several scholars doubted the medieval entries in the Anthologia. Like Stadtmüller before him, Cyril Mango divided the text into six panels, which he would like to imagine in the form of monumental inscriptions placed along the entire length of the western façade.Footnote ¹²⁸ Carolyn Connor suggested a regrouping of the relevant lines into “four grammatical divisions,” found in the middle of line 47 and at the ends of lines 52, 59, and 65.Footnote ¹²⁹ This idea has received much support, as it seems to solve the philological problems.Footnote ¹³⁰ However, since no erroneous entries can be found in any other place within the Anthologia Palatina, it would be very surprising if, of all things, these later added details were incorrect.

The great Paul Friedländer had a more cautious view of the situation and suggested that the linguistic irregularities were perhaps rooted in the material design of the epigram.Footnote ¹³¹ Mary Whitby has also recognized strong grammatical breaks arising from the entries in the manuscript. However, instead of calling the medieval manuscript into doubt, she has arrived at a plausible solution to the problem by reconstructing the panels as being placed close together.Footnote ¹³² In this way, they could be “read as a continuous poem.”Footnote ¹³³ In fact, such a presentation of the plates would be more in accordance with the epigraphic habit of the time than all other scholarly hypotheses, which assume a spatial separation of the plates (Figure 15). This may also vindicate Paul Speck’s disputed reflections on this epigram, which had argued for a reconstruction in which all five inscription panels were placed to the right of the main portal of the Church of St. Polyeuktos.Footnote ¹³⁴

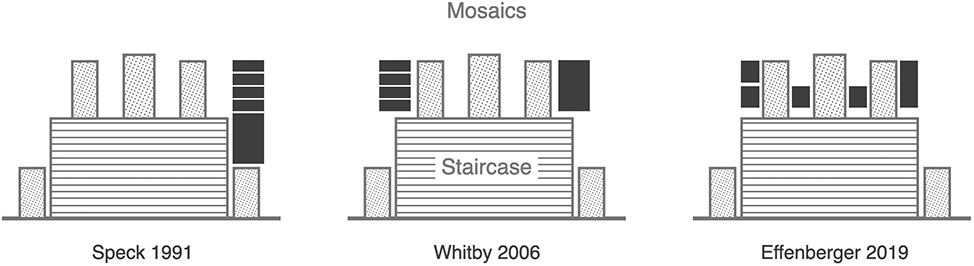

Figure 15 Proposals for the arrangement of the inscription panels on the western façade of St. Polyeuktos

(Credit: Drawing by F. Stroth 2022)

Based on our previous discussion and from an archaeological perspective, we can conclude the following about the materiality of the epigram on the western façade of the Church of St. Polyeuktos. A visitor entering the atrium was confronted with an epigram inscribed on multiple panels. The very fact that this epigram was placed on panels (πίνακες) mounted on the outer wall is already exceptional for the early Byzantine period; we know other rare examples of large inscription panels from in San Vitale and San Apollinare in Classe in Ravenna.Footnote ¹³⁵ Admittedly, they are from interiors; the outdoor inscriptions on San Vitale were executed as mosaics.Footnote ¹³⁶ The letters of the St. Polyeuktos panels were undoubtedly executed as majuscules and arranged in scriptio continua, that is, written without spacing between the words, as was common for epigrams of that time. The inscription panels were probably made of marble, and polychrome highlighting of the text is very plausible. However, the size of the inscription panels and their exact locations around the portals remain unknown.

The Enkomion in the Naos

The state of our knowledge about the epigram in the interior of the church is substantially different since, during the excavation work, seven large-format marble blocks with fragments of this epigram were recovered.Footnote ¹³⁷ These finds transformed our entire understanding of Byzantine epigram culture. Both the length of the epigram – the complete text is also preserved in the Anthologia Palatina – and the literary style of the text, as well as the idiosyncratic and magnificent elaboration of the carved letters in marble, are without comparison (Figures 2 and 16). The material reconstruction of the epigram becomes the source code for reconstructing the entire building. The highly fragmented components provide astonishingly far-reaching insights into the internal structure of the building (Figure 17).Footnote ¹³⁸ The specific form of the text carrier allows a reliable reconstruction of the relevant parts, and, since we know the complete poem, a topology of the text in the different zones of the church can be traced at least partially (see Section 8).Footnote ¹³⁹

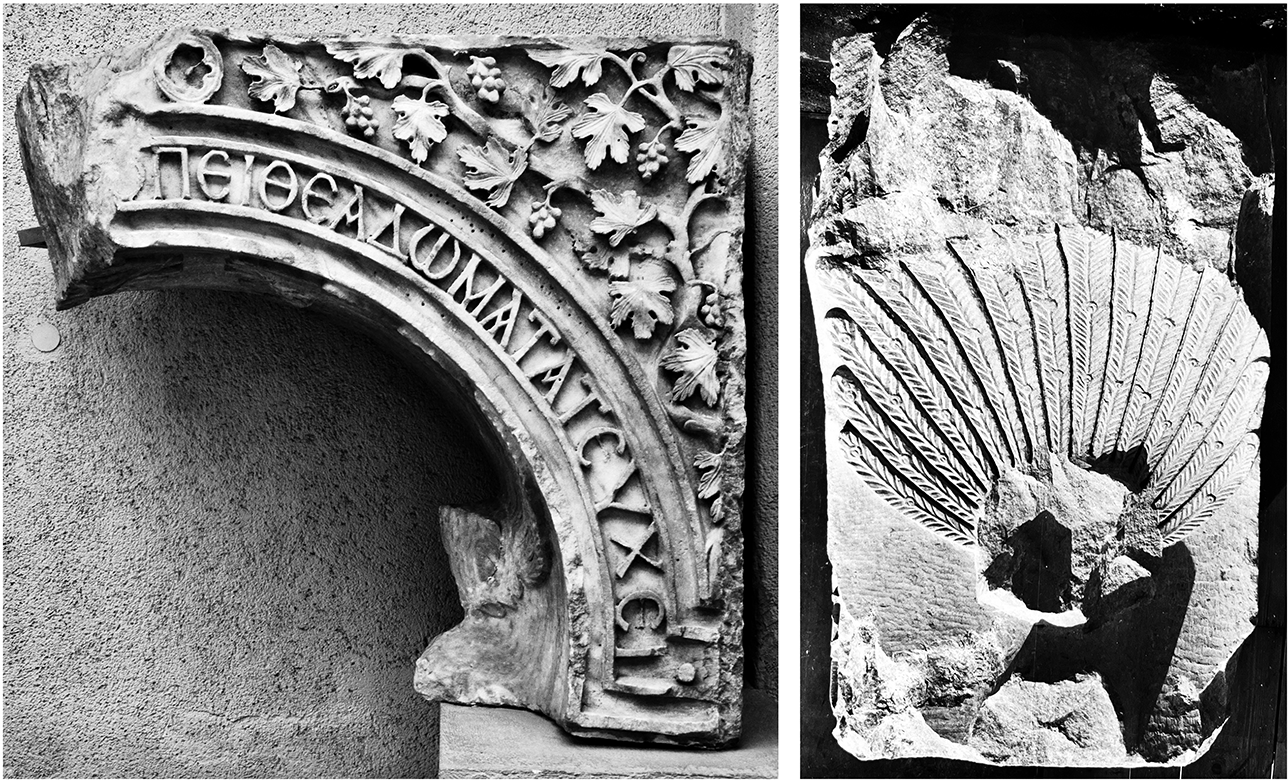

Figure 16 Fragments of Great Entablature from St. Polyeuktos with verse 30 and the broken protome of a peacock

(Credit: David Hendrix 2017; Saraçhane Excavation Archive, University of Oxford)

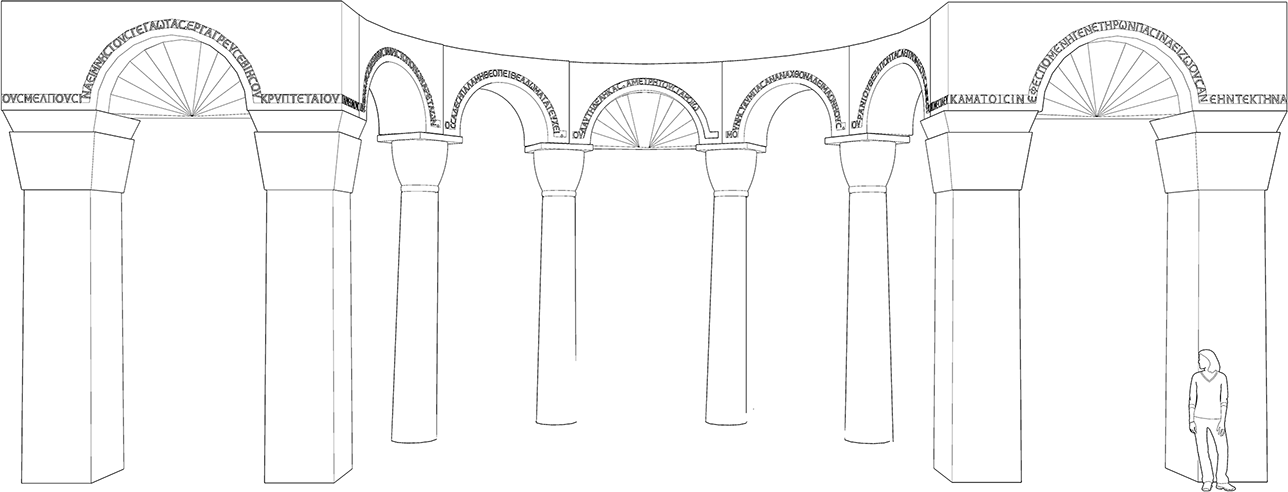

Figure 17 Schematic reconstruction of the central exedra in the northern aisle to show the size relationship of the epigram and the viewer

(Credit: Stroth, Monogrammkapitelle, plate 120 c)

A scholion in the Anthologia Palatina informs us that verses 1–41 are “written in a circle in the naos [of the church]” (Ταῦτα μὲν ἐν τῷ ναῷ ἒνδοθεν κύκλῳ περιγράφονται).Footnote ¹⁴⁰ The text of the ekphrasis in the atrium also informs us that a two-story column construction rose on both sides of the central aisle, the vaults of which spread in apses on both sides (κίονες ἀρρήκτοις ἐπὶ κίοσιν ἑστηῶτες, χρυσορόφου ἀκτῖνας ἀμφοτέρωθεν ἀερτάζουσι καλύπτρης κόλποι δ’ ἀμφοτέρωθεν ἐπ’ ἀψίδεσσι χυθέντες ἀειδίνητον, φέγγος ἀειδίνητον ἐμαιώσαντο σελήνης.).Footnote ¹⁴¹

The enkomion in the naos of the church draws on traditional themes for imperial praise, as prescribed in Menander Rhetor’s treatise on the Basilikos Logos. The lines inscribed inside the church along the south side of the nave (1–21) begin by celebrating Anicia Juliana’s imperial ancestor, her great-grandmother Eudocia, wife of Theodosius II, who built the first Church of St. Polyeuktos. They go on to compliment Anicia Juliana on her illustrious imperial ancestry; Eudocia’s daughter Eudoxia was married to Emperor Valentinian III, while Juliana’s parents were Placidia and the western emperor Olybrius. This glittering genealogy generates the novel epithet πολυσκήπτρων or “many-sceptered.” The poet goes on to celebrate Anicia Juliana’s own achievements; her most outstanding virtue is her orthodox Christian piety which has prompted her program of church-building.

The lines on the north side of the nave (22–41) elaborate on Juliana’s worldwide fame and piety in a sequence of three rhetorical questions. Juliana’s numerous pious works secure her from oblivion; even Juliana herself, it is suggested, has lost count of the number of churches that she built throughout the world (30–32). After stressing once again Juliana’s industrious ancestors (34), the next part of the poem elegantly concludes (35–41) by comparing Juliana’s churches to an immortal family. Running through the themes of ancestry, the text exemplifies Juliana’s outstanding virtue of piety emphasizing her building achievements and concludes with a prayer for longevity.

The Epigram of Sts. Sergius and Bacchus. An Imperial Response?

In the Church of Sts. Sergius and Bacchus, a twelve-line epigram is carved in marble on the cornice surrounding the naos (Figure 18).Footnote ¹⁴² This epigram is often seen as an imperial response to the poems of St. Polyeuktos.Footnote ¹⁴³ The numerous allusions to Anicia Juliana’s glorious ancestry in the latter epigram should have provoked the imperial couple Justinian and Theodora to commission their own epigram. If this was indeed the case, then the much shorter epigram in the much smaller church would have been a very subdued reply on the imperial couple’s part.

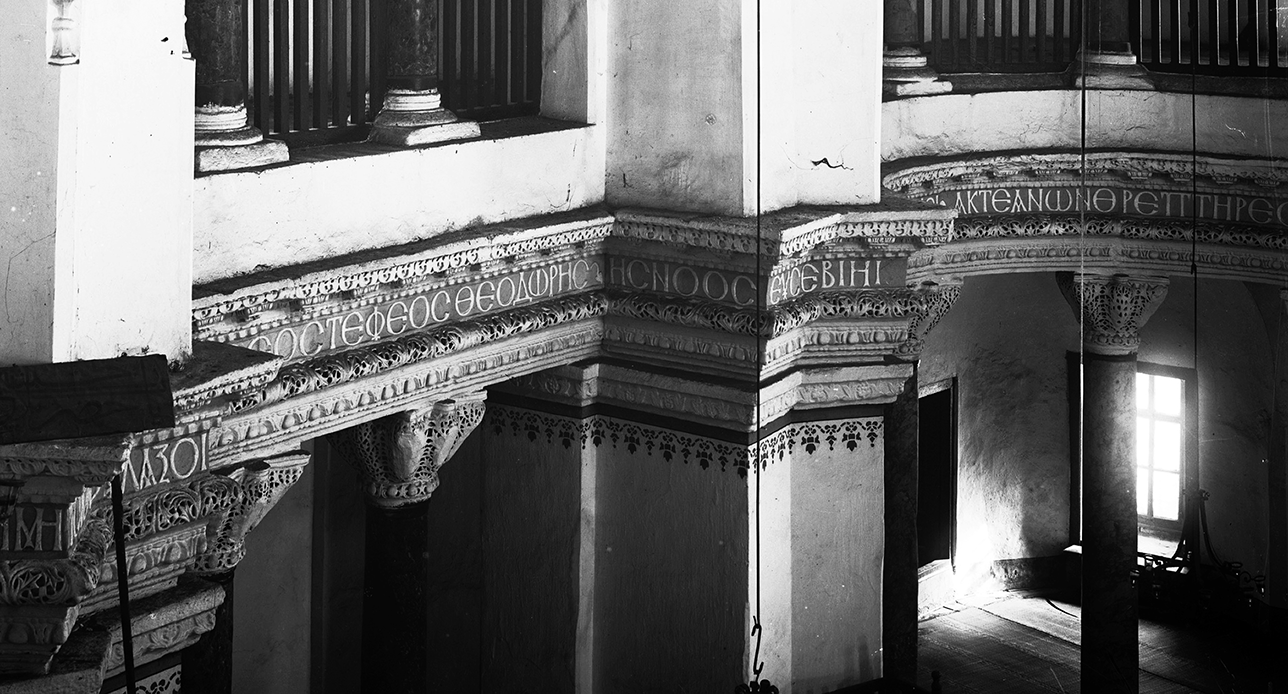

Figure 18 The epigram of Saints Sergius and Bacchus in Constantinople, today Küçük Ayasofya Camii in Istanbul

(Credit: Sébah & Joaillier 1912)

From an archaeological point of view, the two epigrams are comparable only to a limited extent and they are the result of very different concepts.Footnote ¹⁴⁴ The poem of the Church of Sts. Sergius and Bacchus is an in situ work, composed specifically into the spatial frame of the octagon of this church. Only the deliberate arrangement of keywords within the text by the author of the poem enabled the stonemasons to chisel them out – the new titles of the imperial couple as sceptered Justinian and god-crowned Theodora – facing each other exactly in the lateral axis of the church. These keywords condense the central message of this dedicatory poem, and thus the literary and technical making of this epigram is inextricably linked. At the same time, the position of the keywords leads to a better understanding of the architecture, because only this alignment illustrates the significance of the transversal axis of the building.Footnote ¹⁴⁵

In the Church of St. Polyeuktos, the situation is completely different. Unlike in the latter church, the position of the individual verses or words does not seem to have played a role in the message of the epigram here. The decisive factor in this much longer poem was how the numerous verses could be transferred to the wall in a practicable and faultless manner. This was achieved by a one-verse-per-block system, that is, by always inscribing one line of the poem onto one marble component of the inscription frieze. Accordingly, the epigram was already carved on the ground before the blocks were installed, which is also indicated by the elaborate relief technique of the individual letters. In order to ensure a smooth workflow on a major construction site – as indeed St. Polyeuktos Church must have been – this system was one viable solution to actualize the epigram. The background of the inscription was painted blue, which made the text easy to read despite the high mounting.Footnote ¹⁴⁶

Regarding the much discussed relationship between the visual (seeing) and discursive (reading) reception of Byzantine epigrams, we can assume that the carved letters inside St. Polyeuktos must have been clearly visible. However, the complex form of the church interior would have made it difficult to read the full text and not only because of its literary level. While common inscriptions on panels, like the ekphrasis on the western façade of the church, call for people to stop and read, the epigram inside St. Polyeuktos likely invited readers to move through the naos and “read with their bodies as well as with their eyes.”Footnote ¹⁴⁷ The epigrams on and in St. Polyeuktos can thus be described as part of a performative strategy for perceiving the building as a whole.

History of Research

To properly frame the history of the reconstruction of St. Polyeuktos, we must first understand the situation of Byzantine architectural historiography in the mid-twentieth century, when the site was rediscovered. The origin of the central dome as the crowning achievement of Byzantine architecture had an irresistible attraction for architectural historians in those days.Footnote ¹⁶⁸ Like “Kuppelbasilika” for an enthusiastic German school at the beginning of the century, the term “domed basilica” carried the same hypnotic quality in English.Footnote ¹⁶⁹ Particularly popular was a discussion around a group of late-fifth-/sixth-century Cilician churches in Alahan, Meryemlık, Corykus, and Dağ Pazarı.Footnote ¹⁷⁰ While the scholarly group of “dome hunters”Footnote ¹⁷¹ reconstructed these buildings with central vaults, others – and indeed most researchers today – rather hypothesize that these churches had tower-like constructions crowned by wooden pyramid roofs.Footnote ¹⁷² Both groups of scholars agreed to recognize these buildings as prototypes or at least important stages for the architectural innovations in sixth-century Constantinople.Footnote ¹⁷³ The excavator of St. Polyeuktos Martin Harrison was actively involved in this discussion.Footnote ¹⁷⁴ With the rediscovery of the church in Istanbul, a missing link in the evolution of Byzantine architecture seemed to be at hand.Footnote ¹⁷⁵ To reconstruct this splendid church in the capital of the Byzantine Empire without a central dome was hardly thinkable for the academic community at the time.

The Harrison Reconstruction

What came to light during the excavations, however, provided ambiguous evidence concerning the superstructure of the church. Looking ahead to Hagia Sophia, excavator Harrison quickly suggested that a central dome would be appropriate in sixth-century Constantinople and therefore the most probable reconstruction for the roofing of St. Polyeuktos.Footnote ¹⁷⁶ The 5-meter-high platform on which the church rests, as well as the enigmatic oversized foundation strips on either side of the naos, was explained as supports for massive pillars of a central dome.Footnote ¹⁷⁷

A plan of the church reconstructed in this way and complemented by a perspective drawing of the interior executed in watercolor shaped our understanding of this monument for quite a long time (Figure 23).Footnote ¹⁷⁸ At one time, even the plan of Hagia Sophia was projected directly onto the foundations of St. Polyeuktos “to suggest some kind of superstructure that would fit.”Footnote ¹⁷⁹ Even the architects of Hagia Sophia were fitted into this hypothesis; Isidore of Miletus and Anthemius of Tralles were assumed to have built St. Polyeuktos as an early work.Footnote ¹⁸⁰ However, Harrison always had to admit that nothing was found during the excavations that could be attributed to a dome.Footnote ¹⁸¹

The Harrison Correspondence

For this reason, the excavator repeatedly consulted leading authorities in the field of Byzantine architecture for advice on reconstruction.Footnote ¹⁸² Respondents were less than enthusiastic about Harrison’s attempt to reconstruct the building in the style of Hagia Sophia. The feedback was unanimously critical, sometimes in very clear terms. Robert van Nice, who was busy at the time with his epochal architectural survey of Hagia Sophia and to whom Harrison was jokingly “envious of a man who actually has a dome!”Footnote ¹⁸³ was “quite clear that the form of St. Polyeuktos’ foundations bears little or no relation to the form of those of St. Sophia.”Footnote ¹⁸⁴ The architectural historian Paul Underwood, then Dumbarton Oaks field director, has commented several times on Harrison’s reports:

He also wrote a harsh peer review of Harrison’s Fourth Preliminary Report of the excavation to be published in the Dumbarton Oaks Papers and added the sketch of his own reconstruction proposal (Figure 24):

And so, the mentioned plan of the church was removed from Harrison’s paper and unfortunately never printed.Footnote ¹⁸⁷ In place of the original text, a critical passage was introduced which calls the reconstruction of the church “a complicated problem.” It concludes by stating that “a central dome over the two eastern pairs of exedrae seems to be possible, but a basilical roofing cannot be entirely ruled out.”Footnote ¹⁸⁸

Figure 24 Letter by Paul Atkins Underwood to Martin Harrison suggesting reconstruction of St. Polyeuktos, October 19, 1967

(Credit: Saraçhane Excavation Archive, University of Oxford)

John Hayes, who is best known for having published the pottery from the excavation, was also enthusiastically involved in the question of reconstruction. He sent several letters with sketches explaining his ideas, including his own proposal for the reconstruction of the church (Figure 25). He assumed three exedrae on both sides and was an early voice in pointing out that the internal epigram is not sufficiently considered during the process of reconstruction.Footnote ¹⁸⁹

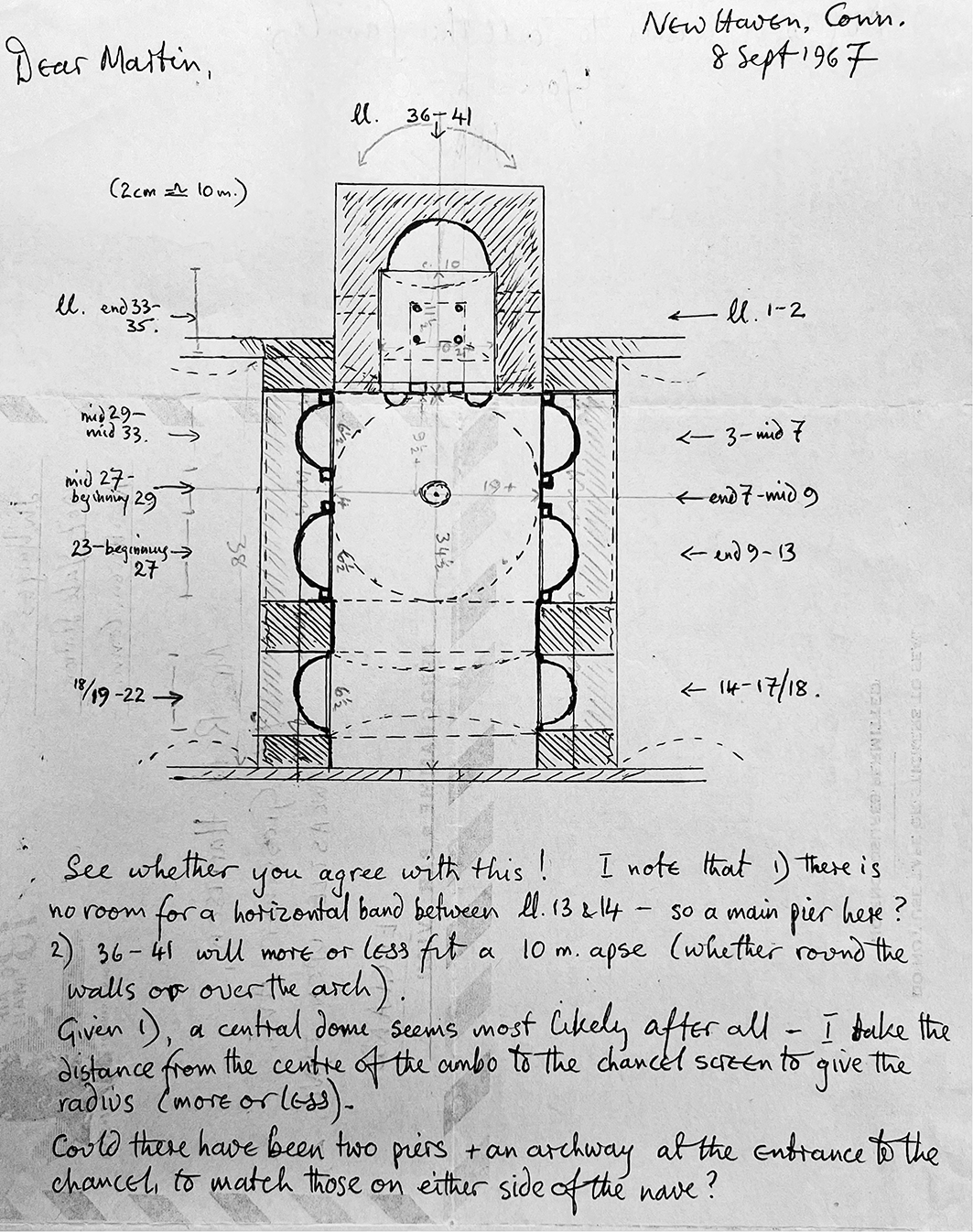

Figure 25 Letter by John Hayes to Martin Harrison suggesting an alternative reconstruction of St. Polyeuktos, September 8, 1967

(Credit: Saraçhane Excavation Archive, University of Oxford)

The architectural historian Peter Megaw also had problems with Harrison’s proposal:

It may have been all of these objections that have driven Martin Harrison to not include a reconstructed floor plan of the church within the originally submitted manuscript of his final monograph, nor to add any sections or other reconstruction drawings of the building. The only reason any drawings can be found in the publication at all is due to the fact that the editor of Dumbarton Oaks – presumably Julia Warner or Paul Underwood himself – vehemently insisted on it.Footnote ¹⁹¹ Harrison later published the well-known reconstruction, but always remained somewhat uncertain about the solution he found. To Robert van Nice he wrote:

Even after the publication of the final monograph, criticism of Harrison’s proposal did not cease. Thomas F. Mathews pointed to the alternative possibility of wooden roof construction and, with explicit reference to relevant passages in Gregory of Tours, wrote that:

Cyril Mango was “not entirely happy with the proposed reconstruction”Footnote ¹⁹⁴ and assumed “six instead of four exedrae which would produce a very different interior plan.”Footnote ¹⁹⁵ Urs Peschlow raised doubts about the reconstructed barrel vaults in the galleries.Footnote ¹⁹⁶ Rowland Mainstone had general doubts about the reconstruction of a dome and instead advocated a tower-like structure with a wooden pyramid roof.Footnote ¹⁹⁷

Almost all renowned Byzantine architectural experts of the time commented on Harrison’s reconstruction of the building – and all these voices were critical. Unfortunately, this criticism never developed into a productive academic discussion. Thus, the Harrison reconstruction of St. Polyeuktos with a central dome remained without “official” alternatives for many decades.Footnote ¹⁹⁹

The Bardill Reconstruction

This situation only changed with the work of Jonathan Bardill and his groundbreaking reinterpretation of the building.Footnote ²⁰⁰ His breakthrough was also made possible by the fact that for the first time the epigram was taken seriously as the “source code” for questions of reconstruction. After a reevaluation of the archaeological and textual sources, Bardill finally confirmed the older doubts that the church of St. Polyeuktos did not have a central dome.Footnote ²⁰¹ He redesigned the building as a five-naved basilica with “classical” wooden roofing; the central nave was covered with a saddle roof and the aisles with corresponding pent roofs.Footnote ²⁰² The wide foundation strips were explained for the first time as substructures of tripartite rows of exedrae on the side of the naos, whereas the previously assumed arrangement of four large piers could never have been reconciled with the excavated structures (Figure 5).Footnote ²⁰³

Bardill points to the Latin term camera used by Gregory of Tour to describe the roof of St. Polyeuktos can denote both vaulted and flat ceilings.Footnote ²⁰⁴ The latter’s text continues that Juliana should order her craftsmen to make panels (tabulae) of the right size for the roof (iuxta mensuram tegnorum), to fix them to the roof (camerae adfixerunt), and to cover them with gold (texeruntque ex auro mundissimo). Today this is interpreted to mean that the tie beams of the wooden roof construction of St. Polyeuktos were paneled with a gilded coffer ceiling. We have prominent comparisons for gilded paneling of the ceilings of Late Antique basilicas, such as the Lateran Basilica in Rome or the Church of the Holy Sepulchre in Jerusalem. But there is no compelling argument to interpret the gilded ceiling of St. Polyeuktos Church as an architectonic manifestation of Ezekiel’s temple.Footnote ²⁰⁵

In addition, the ekphrasis on the west façade of the building reports that the columns of the church “support the rays of the golden-roofed covering” (χρυσορόφου ἀκτῖνας ἀερτάζουσι καλύπτρης).Footnote ²⁰⁶ Older research was uncertain regarding whether it referred to the radiant ribs of a golden dome or simply the rays of light.Footnote ²⁰⁷ The written sources thus remain unspecific; ultimately, the archaeological findings tip the scales in favor of reconstructing St. Polyeuktos today with a pitched roof.

The Internal Arrangements: The Exedrae

The archaeological findings of two exedrae that faced each other on both sides of the Naos intertwine so closely and revealingly that their reconstruction is reliably possible (Figure 26).Footnote ²⁰⁸ Of the only seven fragments of the great entablature with rests of the epigram that became known during the excavations, as many as six blocks can be reliably assigned to these two semicircular niches in the center of the church’s interior.Footnote ²⁰⁹ Fortunately, the few preserved components come from critical key points of the construction (Figure 27). The reconstruction of the central exedrae discussed here differs in crucial points from that of Martin Harrison and Jonathan Bardill.Footnote ²¹⁰

Figure 26 The Bardill reconstruction

(Credit: Bardill, “Église Saint-Polyeucte,” Figs. 4 and 6)

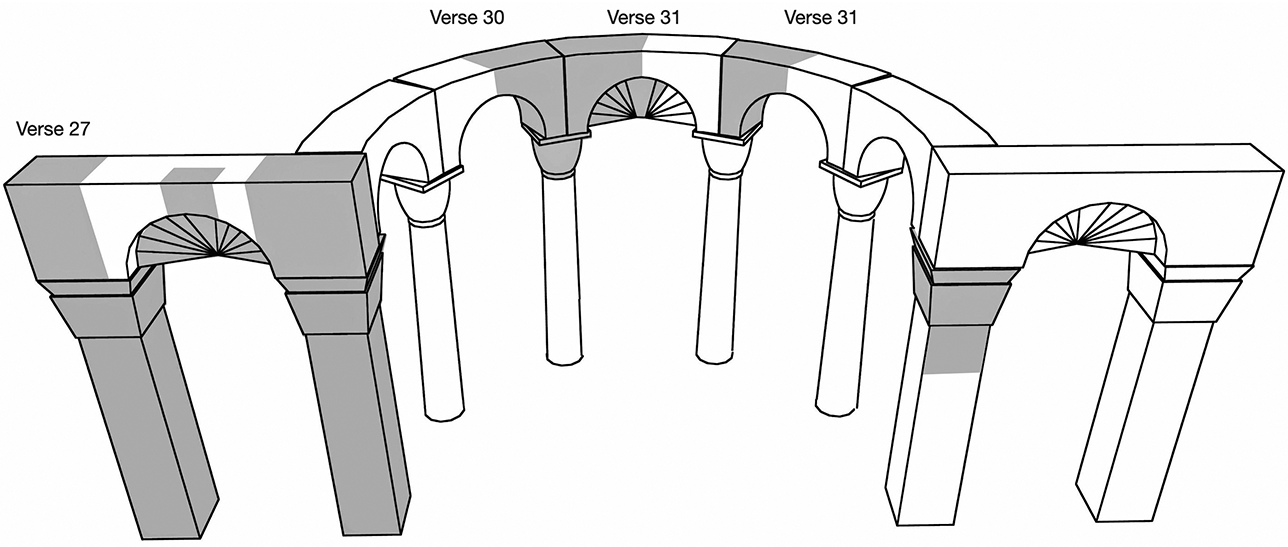

Figure 27 Simplified reconstruction of the northern exedra with all excavated parts marked in grey

(Credit: Stroth, Monogrammkapitelle, plate 120b)

The backbone for the reconstruction of the northern exedra is formed by three blocks of the great entablature, which are inscribed with the successive verses 30, 31, and 32 and thus undoubtedly become recognizable as belonging together (Figure 28).Footnote ²¹¹ The length and curvature of these blocks allow the exedra to be completed into a semicircle consisting of a total of five curved blocks, with one verse of the epigram carved on every block (Figure 17).Footnote ²¹² M. Harrison instead had reconstructed the exedrae with only three curved blocks, and J. Bardill has proposed a solution with three full blocks and two half blocks on the outer sides.Footnote ²¹³ The crucial argument is to be found in the materiality of the epigrams, in how the poem became a physical part of the church. Each of the surviving blocks shows either the beginning of a verse on the left margin (Figure 2) or the end of a verse on the right margin (Figures 16 and 28). This block-wise distribution of the verses can be traced for all preserved structural elements of the two central exedrae in the described manner.Footnote ²¹⁴ The only exception to this rule is a smaller fragment with remnants of verse 25/26.Footnote ²¹⁵ This fragment thus comes from the western part of the northern row of exedrae. However, we have no other archaeological information about the exedrae placed there. Therefore, it seems reasonable to focus the observations on the two central exedrae, and here the findings speak a clear language, Each of the six preserved blocks bears one verse of the founder’s epigram, the large niche blocks on the sides two verses each (Figure 17).Footnote ²¹⁶

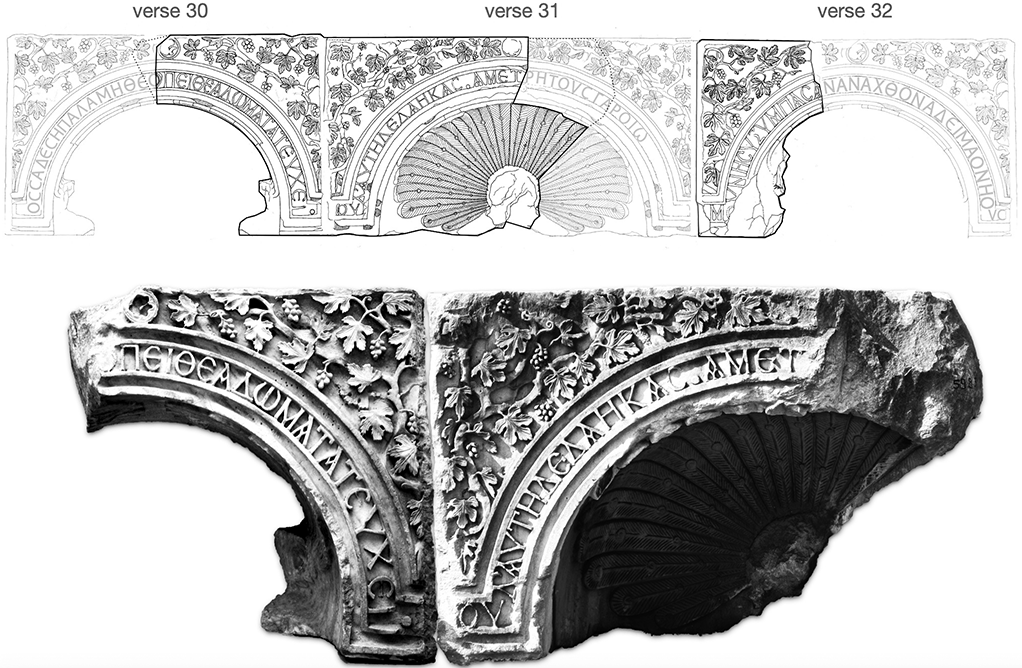

Figure 28 Three block of the Great Entablature with verses 30–32 are matching

(Stroth 2015 after Harrison, Excavations, 120 Fig. B)

This distribution of the poem is closely related to the processing of the inscribed marble blocks, which already took place on the ground, that is, before the individual blocks were moved to their final place in the building. Research long assumed that the carving of the entablature and of the inscription has taken place as one of the finishing stages, in situ, as it can be shown for Sts. Sergius and Bacchus (Figure 18).Footnote ²¹⁷ But at St. Polyeuktos, things are different; the elaborate relief and the distribution of the verses on the individual blocks speak for a carving on the ground.Footnote ²¹⁸

The exedrae constructed in this way were flanked by niches whose shape can also be reliably reconstructed by further fragments.Footnote ²¹⁹ For the northern central exedra, the fragment of such a niche with the beginning of verse 27 has been preserved, so that its position to the left of the northern exedra can be traced.Footnote ²²⁰ For the southern exedra a fragment with the end of verse 9 has been preserved (Figure 22).Footnote ²²¹ Accordingly, each of these flanking niches has included two lines of the epigram, the beginning on the left (verse 27) and the end on the right (verse 9) of which can be traced in the archaeological findings. Also the transition of the verses at the arch apex of such a niche has been preserved on a fragment of the southern exedra with remains of verses 15 and 16 (Figure 27).Footnote ²²² Soffits prove that the undersides of the niches were visible and supported by two pillars each.Footnote ²²³

Some of St. Polyeuktos’ architectural elements, which traveled widely after 1204, seem to complement the excavation findings in Istanbul, fitting like the missing pieces of a puzzle. However, the archaeological excavations were able to clarify unmistakably that the pillars placed next to St Mark’s Basilica in Venice since the thirteenth century were not suitable as supports for the main order on the ground floor of the Polyeuktos Church (Figure 3). A pillar capital, distinguished by its unusual size and singular decoration with a central date palm motif, was found fallen into the substructures during the excavations, together with an inscribed marble block and the fragment of the marble revetment of an associated pillar (Figure 22).Footnote ²²⁴ These pieces of the main order are about 25 percent larger than the corresponding pieces in Venice and show significant differences in decoration.Footnote ²²⁵ Later findings in the Mangana region suggest that we should reconstruct the pillars of the main order not as massive marble blocks like the pilastri acritani are, but rather as bricked-up structures that were covered with decorated marble slabs.Footnote ²²⁶

From the group of multiform capital types known for St. Polyeuktos, only the capital in Barcelona meets the size requirements for the exedrae of the ground floor.Footnote ²²⁷ In addition, a stylistic connection between the Barcelona-type capitals and the excavated pillar capitals is achieved by means of the protruding cornucopia bands on the diagonals, even though these fragile reliefs today are largely broken or have been reworked (Figures 3 and 22).Footnote ²²⁸ These unusual details, which shape the overall impression of the capitals, have received little attention in research and thus remain enigmatic.

In an attempt to establish a connection between these exedrae and the overall building, the latter of which is preserved only in its substructures, all previous reconstruction proposals show weaknesses and do not fit within the realm of profound archaeological argumentation.Footnote ²²⁹ The reverse connection of the exedra rows to the church’s side aisles remains a riddle. Significant reworking on the backs of the prominent inscription blocks could provide essential insights in this regard, but so far has received no attention in context of the study of the building.Footnote ²³⁰

Another specific architectural problem that arises from the reconstruction of St. Polyeuktos with a wooden roof has similarly received little attention so far. How was it possible to integrate the large exedrae into the side aisles structurally? While in a standard basilica the clerestory consists of two simple upper walls, the unique interior design of St. Polyeuktos complicated things. The rows of exedrae on both sides of the naos ended in half domes of considerable size (Figure 5 and 7). These vaults of about 7–8 meters would have caused lateral forces and required structural integration into the side aisles. Alternatively, we know of wooden half domes, such as the apse of the Church of St. Stephen in Gaza.Footnote ²³¹ A dropped wooden ceiling over the galleries of the side aisles could have covered the back part of the vaults.

In summary, despite a highly fragmentary tradition, scholarship on the reconstruction of the exedrae has come surprisingly far. The unique and fortunate interlocking of architectural elements and documents in Istanbul, Barcelona, and Heidelberg allows us to reconstruct two exedrae of St. Polyeuktos reliably. This allows us to reconstruct the position of verses 8–16 as well as 27–35 as facing each other in the center of the church space. In this way, questions about the spatial references of the epigram become possible. The six marble blocks with remains of the epigram make it conceivable that one line of the epigram was placed on each block. The verse-per-block principle provided a method for transferring the poem to the stone that allowed several stonemasons to work on several blocks at the same time and similarly, largely eliminated errors in the connections of the epigram verses.

The Epigram of St. Polyeuktos Mentioning Solomon

The adulatory inscription at the western façade of the church provides the first argument supporting Harrison’s Temple interpretation. After praising the emperors Constantine and Theodosius as the great builders in the City’s history (see Section 6), the text on the second inscription panel claims that the foundress Anicia Juliana:

The image of the Old Temple was still very much present in sixth-century Constantinople; in fact, textual references to Solomon occur frequently during this time. For the Hagia Sophia alone, we can point to several texts illustrating this tendency.Footnote ²³⁷ The hymn “On Earthquakes and Fires,” which was very likely recited for the first time shortly before the official re-inauguration of Justinian’s Hagia Sophia in 537, is one of these examples:Footnote ²³⁸

The references to Solomon in both texts – the epigram of Juliana’s church as well as the hymn to Justinian’s Hagia Sophia – follow a similar pattern. On the one hand, Solomon functions as a biblical archetype for a good founder of a monumental sacred building, hereby providing a suitable typological comparison for the dedicatees in these dedicatory texts. It is no coincidence that both texts also refer to Emperor Constantine as the City’s most important historical founder. On the other hand, both texts emphasize the difference in durability between the original temple and its successors. Unlike Solomon’s temple, which was destroyed and lost, both church buildings in Constantinople had been constructed rather quickly and were splendid re-creations of older sanctuaries, intended to last through the centuries.Footnote ²³⁹ Thus, the Temple of Solomon served both as a metaphorical role model and a means of contrast.Footnote ²⁴⁰

Christine Milner, and Jonathan Bardill at a later date, modified Harrison’s Temple idea and argued that the specific model for Juliana’s church was rather Ezekiel’s Temple and that she intended “an earthly copy of a new and better Temple”Footnote ²⁴¹ surpassing Solomon’s work. This is rather difficult to argue, since the dedicatory inscription refers explicitly and exclusively to Solomon himself.

The Measurements

The excavator, Martin Harrison, has argued that the sanctuary of St. Polyeuktos replicated the Temple of Solomon in its exact measurements as given in the Book of Kings or Ezekiel.Footnote ²⁴² His idea was not entirely new. In the case of Hagia Sophia, earlier attempts had been made to apply metaphorical Solomonic references in Byzantine texts as the actual unit of measurement of the building.Footnote ²⁴³ While no current scholars believe this to be true for the Church of Justinian, the idea is still very common for St. Polyeuktos. Upon taking a closer look, however, the measurements and relations are not any more convincing for Juliana’s church.

For St. Polyeuktos, the length and width of the church given by the excavators is approximately 52 x 52 meters, which can be divided quite well into 100 x 100 royal cubits of 0.52 meters (Figure 10). At first glance, this seems to fit neatly with biblical references to the Temple. Unfortunately, these calculations are not quite that simple, and for such a numbers game to work, the textual and archaeological data has to be interpreted very selectively. The square of space taken as a basis by the excavators can only be achieved if the naos and the naves are measured together, while the narthex in front must be excluded. Structurally, however, there are no good reasons to consider the latter structure separately. Not only is the sub-narthex part of the church’s platform and integral to its structure, but the central corridor and narthex share the complex system of cross vaultings and thus have certainly been designed and constructed together. If one measures the full main body of the church together with the narthex, one obtains a less conspicuous basic dimension of 58 x 52 meters.

Finally, the dimensions deviate from the actual Temple dimensions as given in the Bible. Ezekiel reports the length of the Temple as 100 cubits, while the width, however, was only 20 cubits. Only for the platform of the Temple is a width of 100 cubits reported.

We have good reason to believe that the idea of St. Polyeuktos being a physical model of the temple in terms of its dimensions originates in an idea broached in a Dumbarton Oaks peer review. Harrison’s originally submitted manuscript for the final monograph does not seem to have mentioned this idea at all. The anonymous peer reviewer of the manuscript, however, offered among other things the following suggestion:

The fact that Harrison started to deal with the subject only at this late date, when the field work at Saraçhane was already finished, is of interest for us. The metrology of the structure – which was never explained in detail at any point – could not have been deduced from the original walls, but rather was developed as a product of armchair-archaeology. Finally, it seems to have been Michael Vickers who first offered the idea that the unit of measurement was not the usual “Byzantine feet” but could have been the so-called “royal cubit.”Footnote ²⁴⁵ Vickers was involved in archaeological fieldwork in Northern Africa, where the team had encountered a local unit of measurement, the “Punic foot,” for the layout of second-century Roman military buildings in Tripolitania.Footnote ²⁴⁶ While the use of traditional units of measurement by local craftsmen in Tripolitania is plausible for practical reasons, it is hard to imagine a workshop in Constantinople giving up its established workflow to engage in virtual measurements for such complex architecture.

Robert Ousterhout sums it up brilliantly when he states that any Byzantine church can become an image of the Temple simply by appropriating its terminology.Footnote ²⁴⁷ A reference to the Temple is made through words, ceremonies, and relics, but not through specific architectural forms or measurements.

The Architectural Sculpture (Peacocks for Seraphs)

Similarly, the ostentatious decoration of St. Polyeuktos has been compared with that described for the Temple. Harrison points to the church’s interior decoration, especially the omnipresent peacock motif. The peacocks in the niches of the lower exedra were interpreted as reference of the cherubim which, according to the Book of Kings and Ezekiel, adorned the Temple.Footnote ²⁴⁸ Methodologically, this is poorly done art history and requires no lengthy contradiction; a peacock is not a cherub. Later advocates of the Temple thesis agreed that such an interpretation is problematic, preferring instead to interpret the iconography of the interior decoration of St. Polyeuktos characterized by its peacocks and palm trees as a more general reference to paradise.Footnote ²⁴⁹

In conclusion, the tempting idea that Anicia Juliana’s church was meant to be a physical copy of the biblical Temple – whether that of Solomon or of Ezekiel – is not convincing. The brief reference to the biblical builder Solomon in the very long epigram of St. Polyeuktos is not a special feature or even a unique attribute, but rather one contemporary metaphorical strategy to praise the foundress and her building. The fact that Byzantine poets used a similar image of Solomon to praise both Juliana and Justinian should not be understood as a contest or conflict between the two, but rather as an indication of how popular and widespread this topos already was. Even on a metaphorical level, the allusions ultimately fall short of the mark. The dedicatory poem as a whole does not support this kind of interpretation of the building. The text contains no sophisticated theological content, let alone any eschatological allusions.Footnote ²⁵⁰ What emerges from the text, instead, is Juliana’s ambition to create a monument that would endure throughout the ages and prove worthy of herself and of her ancestors for all time.Footnote ²⁵¹ This is the key point of comparison the poet of Juliana’s epigram wanted to highlight with these references to Solomon’s lost Temple, and it is equally appropriate when applied to Justinian’s Hagia Sophia.

The Marble Icons

The most important group of Early Medieval finds from St. Polyeuktos is a group of eight marble panels with figural relief decoration (Figure 29).Footnote ²⁵⁶ While the excavator considered them to be parts of the original sixth-century equipment of the church, there is broad consensus today that they came into the church at a later stage.Footnote ²⁵⁷ The panels measure about 40 x 35 x 10 centimeters and show a bust image of Christ, the Mother of God and a set of saints, who are depicted either with veiled hands, with gemmed codices, or carrying a cross.

Differences in the manner in which the heads, hands, and robes were made suggest that three stonemasons were involved in the production.Footnote ²⁵⁸

Figure 29 Marble icon with Apostle

(Credit: Mathews – Muller, Dawn of Christian Art, Fig. 6.9)

All figures are shown frontally, and the faces and hands seem to have fallen victim to systematic damage. This damage is associated with the Byzantine iconoclastic controversy, so we can safely posit the eighth century as a terminus ante quem. Shortly after their excavation, the interpretation of these panels as icons of the early Byzantine templon of the church was already being raised.Footnote ²⁵⁹ However, this interpretation is problematic for several reasons.Footnote ²⁶⁰

The quality and style of the marble carving is clearly different from the other sculptures in the church.Footnote ²⁶¹ A dating of the reliefs into the seventh century is stylistically convincing.Footnote ²⁶² Thus, if one would assume a function of the images in the templon, they would necessarily have been later additions.Footnote ²⁶³

Technical traces have been pointed out as small square holes at the bottom of the front of all panels, which are either interpreted as fastening traces, or would have been used to fasten lamps.Footnote ²⁶⁴ Plaster remains on the outer edges indicate that at least some of the panels were originally framed by stucco.Footnote ²⁶⁵

So far, too little attention has been paid to the finding place of the plates within the structure in two opposite places in the northern and southern part of the sub-narthex of the church.Footnote ²⁶⁶ The distance between the finding location and the bema of the church has been explained so far by the fact that the slabs could have been moved to the substructure of the narthex after iconoclastically motivated damage and deposited there.Footnote ²⁶⁷ However, one could also consider that the images were already present in this place. Here was the entrance to the connecting corridor between the atrium and the crypt, and so, the images could well have fulfilled a function in this place as well.Footnote ²⁶⁸

While the image panels of the Polyeuktos church were long considered to be early isolated finds, very similar objects have since become known at other sites. A group of altogether seven marble image panels of similar format, but different techniques, came to light in a church in Olympos and is not addressed by the excavators as icons of the templon, but reconstructed as having been placed on a side wall in the naos.Footnote ²⁶⁹

The question whether the relief panels of the Polyeuktos church are really images of the templon barriers and thus early archaeological evidence of this image practice must therefore be doubted.Footnote ²⁷⁰ Although the characters depicted in the reliefs can be easily compared with the description of the templon of Hagia Sophia, the material execution remains different in crucial points.

The Cemetery and the Funerary Column

In the middle Byzantine era, the atrium became a cemetery. As the excavation was a rescue dig, the cemetery was not dug under ideal conditions and not all graves were recorded. A total of 143 burials are listed by Harrison. A complication was the disturbance of the cemetery in later Byzantine and Turkish times. As a result, Harrison acknowledges that it is not possible to determine a chronological sequence for the graves. Eric Ivison was able to clarify some points of chronology and to establish reliable dates for the use of the cemetery.

The chronology of the cemetery in the atrium can best be understood by examining the levels over the staircase leading up to church, and the pavement immediately in front of it. In the late tenth and early eleventh centuries, black earth began to accumulate on the pavement of the atrium, washed up by rainfall. This indicates that the drains were blocked and that the church and its perimeter were dilapidated or abandoned. Such abandonment led to the despoliation of the church for its marble, including the destruction of the steps and railings of the staircase. The looted foundation of the stairs was then covered with earth containing a ceramic mixture, the most recent finds of which date to the first half of the twelfth century.

The cemetery must have been founded by 1150, for nearly all the burials were dug into fills containing pottery of no later than the first half of the twelfth century: The graves were dug into these layers and so therefore must be even later than them. This twelfth-century date is also confirmed by the dates of objects found associated with the burials.

The coin series from the site suggests to Michael Hendy that the site was certainly in ruins by about 1225, perhaps as a result of the final collapse of the church.

In the last days of excavation, some 5 meters west of the entrance staircase of the church, the circular pedestal for a columned monument was unearthed. This monument has received little attention so far, although it is a unique find for the Byzantine Funerary archaeology of Constantinople (Figures 30 and 31)

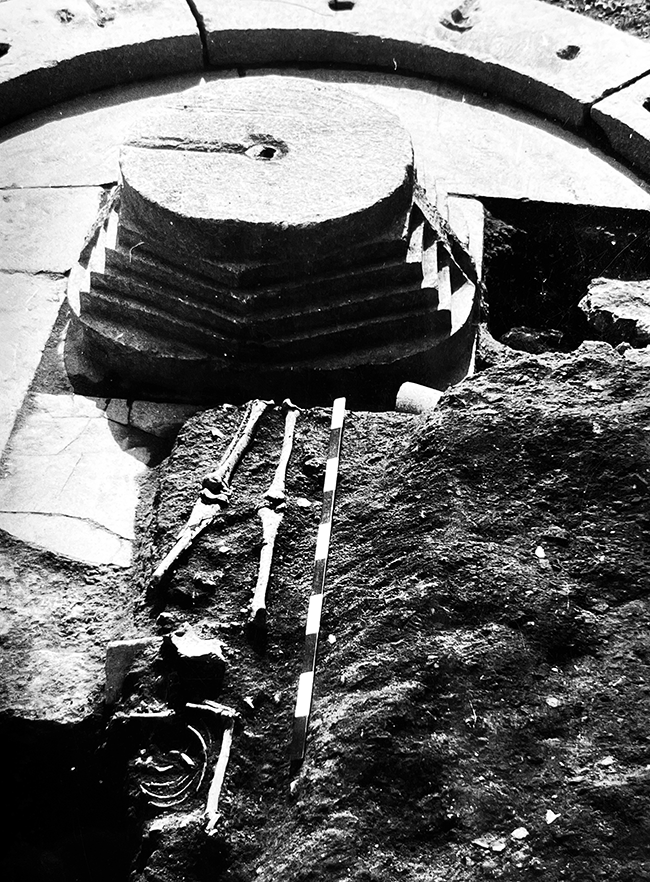

Figure 30 Postament of the Funerary Column of St. Polyeuktos. At a later stage, the monument itself got buried under later graves.

(Credit: Saraçhane Excavation Archive, University of Oxford)

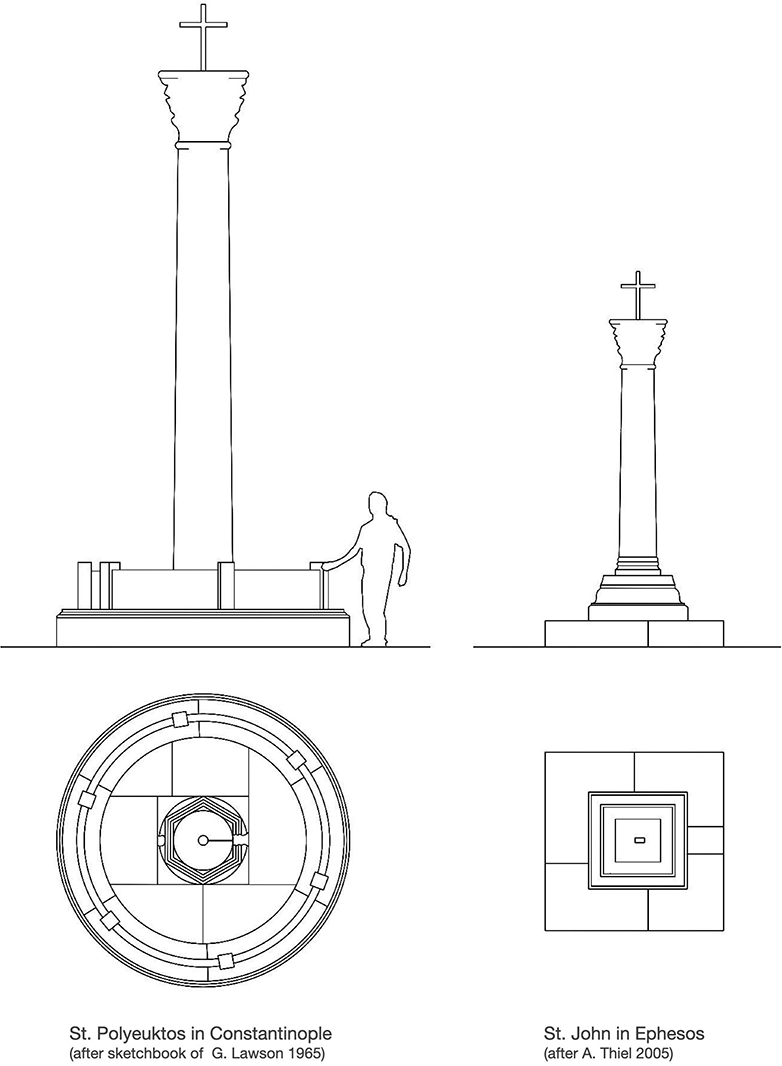

Figure 31 The Funerary Columns of St. Polyeuktos and of St. John in Ephesos in comparison

(Credit: Drawing by D. Miznazi 2022)

The structure was built on top of the accumulated earth in the atrium, and so probably has a terminus post quem of circa 1100–1150. What has survived is a circular base with a diameter of 3 meters. The intensive reuse of marble fragments for the lowest layer of this base indicates the desire for a solid foundation. At the top, a column base measuring approx. 1 x 1 meters was embedded between marble slabs in the center of the circular construction. A precisely worked 40 cm profile enclosed the top and slightly set off like a round stylobate. Traces and dowel holes on this round stylobate allow the reconstruction of curved barrier slabs set on top of it, which were embedded between six posts. The format of the monolithic column base suggests an erected column shaft above of more than 5 meters. This results in a funerary column of impressive size.

The excavator Harrison is right to interpret the construction as a graveyard-marker erected in the middle Byzantine cemetery only at the twelfth century.Footnote ²⁷¹ No comparison has yet been mentioned for this monument yet, but one can point to a similar, albeit clearly smaller construction in the atrium of the Basilica of St John in Ephesus (Figure 31). Here, too, the courtyard of the church is used as a cemetery in middle Byzantine times and a column monument of moderate size is erected. Even in its late phase of use, with the funerary column of St. Polyeuktos, the site once again holds an otherwise unknown type of monument for the archaeology of Constantinople.
